Product Details:
|
| Terminal Section Analysis: | Imported Segmentless Zoom Optical System | Total Video Magnification: | 30~312X |
|---|---|---|---|
| Applivable Wire Range: | 0.01~50mm2 | Terminal Corrosion: | Liquid Cleaning (5S Completed) |
| Blade Specifications: | Dia.110X0.5mm（Germany Imported, Delicate And Durable) | Imaging System: | Industrial HD Video System 5 Million |
| High Light: | 312X Wire Harness Tester,50mm2 Wire Harness Tester,50mm2 wire harness testing equipment |
||
Cutting and grinding integrated high-quality crimp section analysis system

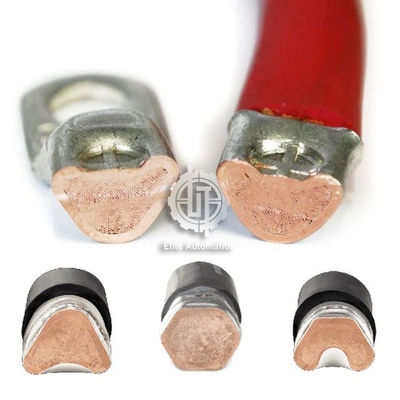

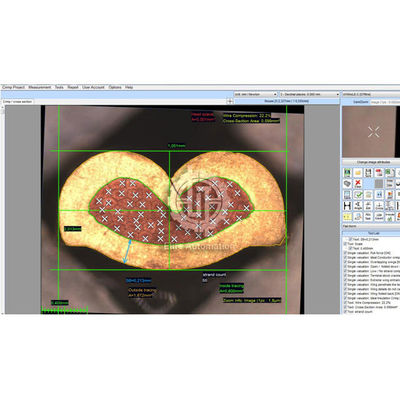

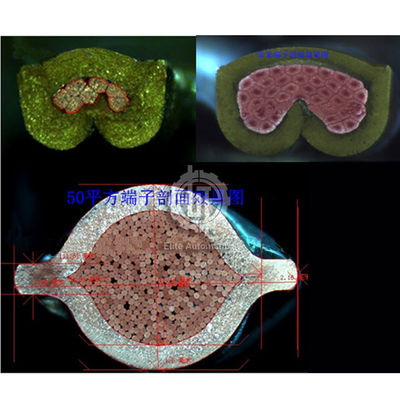

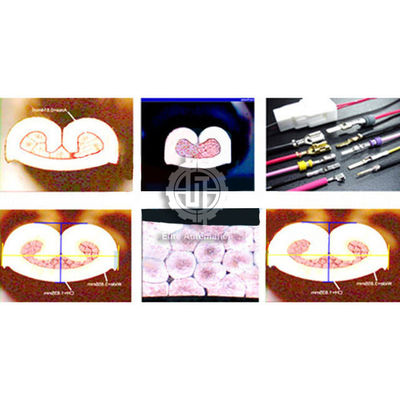

This crimp cross-section analysis system helps you create high-quality crimp cross-section images in a fraction of the time required using "traditional" methods. The system consists of modular components that can be combined to meet your specific requirements .
The automatic terminal cross-section analyzer is a precision testing and analysis equipment specially designed for wire harness quality testing.

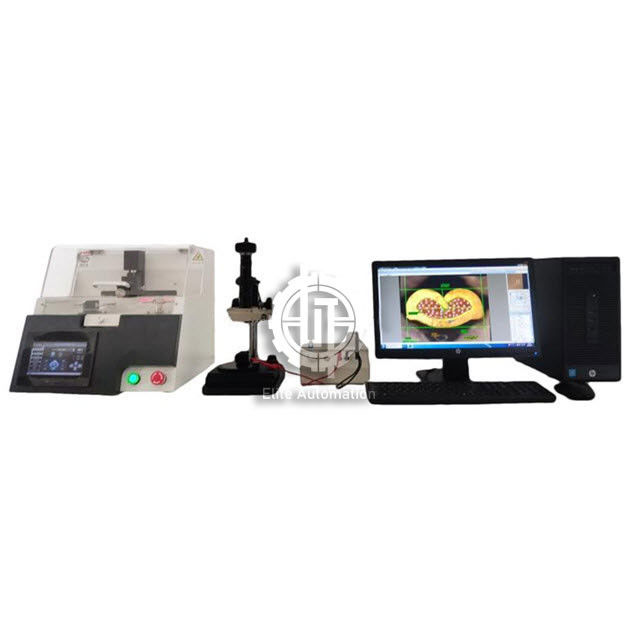

The integrated cutting and grinding equipment, optical sampling, corrosion cleaning, section image acquisition system, and Japanese imported wire harness terminal picture calculation and analysis system constitute the crimp section analysis system.
Using the latest proprietary technology, cutting and grinding are completed in one step, ensuring that the flatness requirements of the terminals are met.
The entire inspection system will complete the processing audit of a terminal within three minutes, significantly improving the quality inspection speed of the terminal section.
The process is simple, easy and fast. It adopts a high-definition image acquisition system developed in Japan to ensure accurate measurement analysis and escort your production.
X-axis and Y-axis stroke power adopts fully automatic precision integrated automatic cutting and grinding equipment with German motors and Japanese Panasonic servo motors.
Using Japan's Mitsubishi PLC controller. Using encryption and CD analysis of the terminal part of the tool
For more information, please contact our sales staff. We will be more than happy to meet your needs and provide the best solution for your case. Our company is also very good at modifying all our machines to suit your special Demand. On-demand customization is one of our main services. You will find that we are not only a machinery manufacturer, but also a total solution provider for your actual case. We look forward to investigating and discussing with you.
| Terminal Section Analysis | Imported stepless zoom optical system |
| Total video magnification | 30~312X |
| Applicable wire range | 0.01~50mm2 |
| Terminal corrosion | Liquid cleaning (5S complete) |
| Blade Specifications | Diameter 110X0.5mm (imported from Germany, exquisite and durable) |
| imaging system | Industrial HD video system 5 million |
| light source | All-white adjustable LED lighting |
| abrasive sandpaper | 1200# |
| Standard Fixture | 0.01~50mm2 |
| Premium | High-precision reference ruler 0.01/10mm |
| power supply | 100~240VAC, 50/60Hz |
| aspect | W500XD350XH350 |
