Product Details:
|
| Wire Diameter: | 3.0-8.0mm | Min. Diameter: | 0.6mm |
|---|---|---|---|
| Cutting Depth Unit: | 0.01mm | Stripping Accuracy: | ±0.1mm |
| Stripping Layer: | Up To 8 Layers (adjustable) | Dimension: | 760*700*400mm |

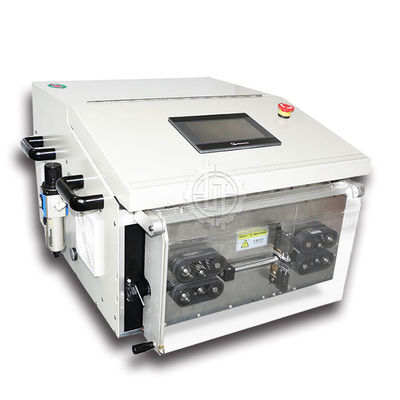

Up to 100 set of Memories Multi-Core Cable Cutting and Stripping Machine
With different choices of blades, the machine can perform various type of wire cutting such as outer sheath stripping or inner core peeling and give very neat incision and peeling quality.
The machine can be applied to a single core or multi-core of cable application. There are up to 100 sets of memory setting for all kinds of processing data which give a very user-friendly feature and is saving a lot of time for setting. The wire cutting, outer sheath stripping and inner core insulation stripping can be done simultaneously for improving the manufacturing efficient; hence, it is supporting you for a very good completing advantage.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Wire diameter | 3.0-8.0mm |
| Min. diameter | 0.6mm |
| Cutting depth unit | 0.01mm |
| Stripping accuracy | ±0.1mm |
| Stripping layer | up to 8 layers (adjustable) |
| Production efficiency | 750-1300Pcs/h |
| Rotary blades | 2 blades, imported tungsten steel |
| V blades | 2 blades, swedish high speed steel |
| Power | 220/110V 50Hz (customizable) |
| Air pressure | 0.4~0.6Mpa |
| Weight | 102kg |
| Dimension | 760*700*400mm |
