Product Details:
|
| Machine Name: | Computerized Peeling And Thread Cutting Machine (4 Square Meters) | Conduit Diameter: | 1.5-6mm |
|---|---|---|---|
| Production Efficiency: | 3000-7000 PCS / H | Cutting Wire Core: | 0.1-4 Square Meters |
| Weight: | 26kg | Memo Function: | Incoming, Outgoing, Automatic Tool Setting, Timing Start, Output Can Be Set, And Tangent Speed Can Be Adjusted |
| Cutting Length: | 1-99999.99mm | Dimensions: | 400*300*330mm |
| Stripping Length: | First Stripping 10mm Tail Stripping 10mm | Blade Material: | Imported High-speed Steel, Tungsten Steel |
| Pulse Equivalent: | No Error Within 2m | Middle Strip: | 15 Segments |
| Driving Mode: | Four-wheel Drive At The Same Time | Accuracy Of Incoming And Outgoing Motor: | Silent Mixing Motor 0.01mm Per Step |
| Power Supply: | AC175V-260V50/60HZ | Cut-off Tolerance: | Within 0.002*L |
| Power: | 120W-220W | ||
| High Light: | AC175V Wire Harness Cutting Machine,AC260V Wire Harness Cutting Machine,Multifunctional Wire Processing Machine |
||

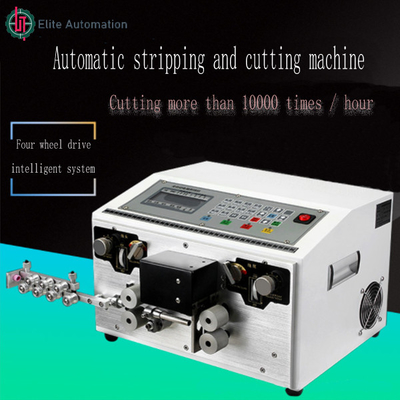

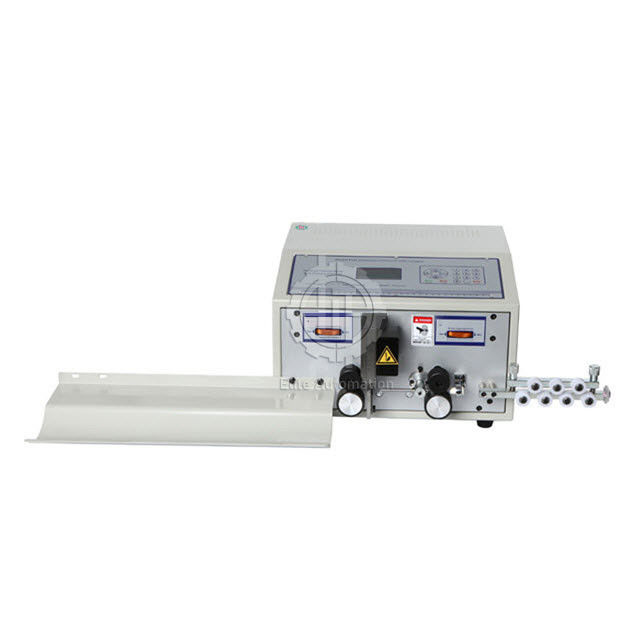

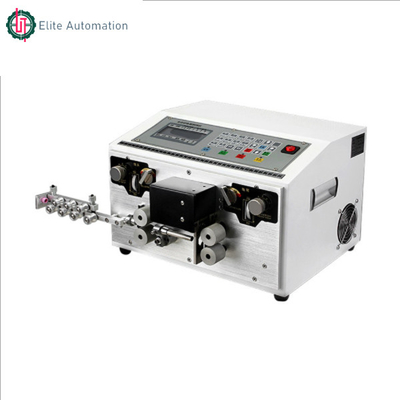

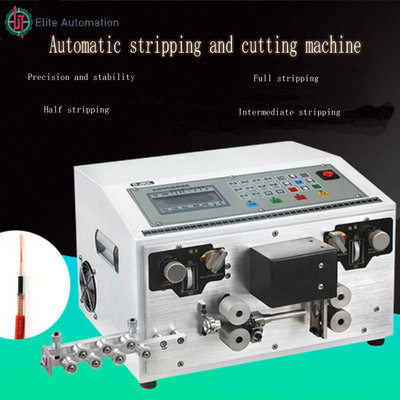

The machine is suitable for a variety of wires, such as electronic wire, FEP wire, silica gel wire, glass fiber wire, coaxial line, isolation wire, sleeve, etc. Function: realize the full stripping, semi stripping and medium stripping of wire. The machine uses a fully automatic moving tool holder, four wheels are driven at the same time, the gear is cut off, the knife cut is neat, and the stripping quality is stable. Led dual language (Chinese / English) setting, simple operation, intelligent setting and flexible replacement. Seven straighteners are adopted to make the wire more straight and accurate, and improve the work quality and efficiency. Provide a variety of accessories for more convenient use
| Machine name | Computerized peeling and thread cutting machine (4 square meters) |
| Conduit diameter | 1.5-6mm |
| production efficiency | 3000-7000 PCS / h |
| Cutting wire core | 0.1-4 square meters |
| Weight | 26kg |
| Memo function | Incoming, outgoing, automatic tool setting, timing start, output can be set, and tangent speed can be adjusted |
| Cutting length | 1-99999.99mm |
| Dimensions | 400*300*330mm |
| Stripping Length | First stripping 10mm tail stripping 10mm |
| Blade material | Imported high-speed steel, tungsten steel |
| Pulse equivalent | No error within 2m |
| Middle strip | 15 segments |
| Driving mode | Four-wheel drive at the same time |
| Accuracy of incoming and outgoing motor | Silent mixing motor 0.01mm per step |
| Power supply | AC175V-260V50/60HZ |
| Cut-off tolerance | Within 0.002*L |
| Power | 120W-220W |
