Product Details:
|
| Stripping Range: | 1-16 Mm2 | Cutting Length: | 1 Mm-1000000 Mm |
|---|---|---|---|
| Cutting Tolerance: | Within 0.002*L (L=cutting Length) | Stripping Length: | Side 1 Full Strip: 1-190mm, Side 1 Semi Strip: 1-1500mSide 2 Full Strip: 1-80mm, Side 2 Semi Strip: 1-500mmm |
| Maximum Diameter: | Φ10mm | Tool Material: | High-quality Imported High-speed Steel |
| Drive Mode: | 16-wheel Drive (silent Hybrid Stepping Motor, Servo Tool Post) | Wire Feeding Method: | Belt Feeding, No Embossing And No Scratches On The Cable |

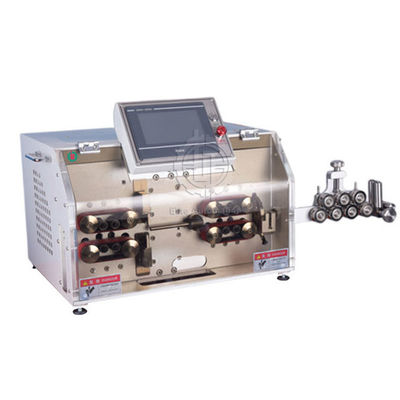

Fully Automatic Cable Cutting and Stripping Machine for 1 to 16mm2 Cable

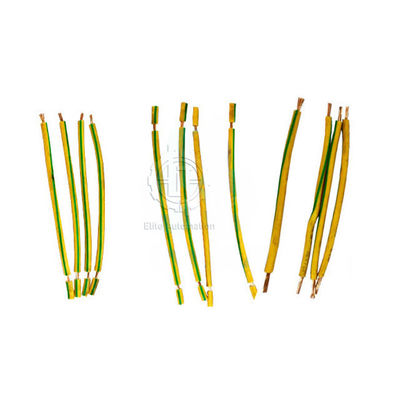

This machine can automatically cut and strip cables from 1 to 16 mm2. It strip outer sheath of single conductor cables. One-time cutting and stripping, saving labor and time and increasing productivity. With belt feeding, wires no have less embossing or scratches.
The display is using LCD touch screen dialog mode, beautiful appearance, simple operation, easy maintenance, stable performance, fast speed, and high precision LCD touch screen dialog mode, beautiful appearance, simple operation, easy maintenance, stable performance, fast speed, and high precision.
This machine is widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toys industry.
| Wire feeding method | belt feeding, no embossing and no scratches on the cable |
| Display | 7-inch true color touch screen |
| Stripping range | 1-16 mm2 |
| Cutting length | 1mm-99999.99mm |
| Cutting tolerance | within 0.002*L (L=cutting length) |
| Maximum diameter | 10mm |
| Tool material | high-quality imported high-speed steel |
| Productivity | 3600 pcs/hour (depending on the length and size of the wire) |
| Drive mode | 16-wheel drive (silent hybrid stepping motor, servo tool post) |
