Product Details:
|
| Model: | KAR-06S | Power Supply: | AC220V / 50Hz / 60Hz Single Phase |
|---|---|---|---|
| Capacity: | 4000-6000 Pieces / Hour (depending On The Material) | Wire Range: | AWG#16-AWG#32 |
| Cutting Line Length: | 32mm-9999mm | Cutting Accuracy: | 0.2±0.02 |
| Stripping Length: | 0.1-9mm | Pressing Capacity: | 2 Tons |
| Detection Device: | Detect Whether There Is Wireless Material, Pressure, Conduit And Air Pressure | Appearance Dimension: | L980*W700*H1310mm（Without Protrusions） |
| Weight: | About 400kg | Tool Material: | Imported Tungsten Steel / High Speed Steel |
| Display Mode: | LCD (Chinese And English Translation) | Applicable Mould: | OTP Transverse Mold, OTP Direct Mold, Can Be Equipped With Vibration Plate |
| High Light: | 0.5mm Cutting Accuracy Cable Terminal Machine,Double Head Strip Terminal Machine,Double Head Mute Terminal Machine |
||

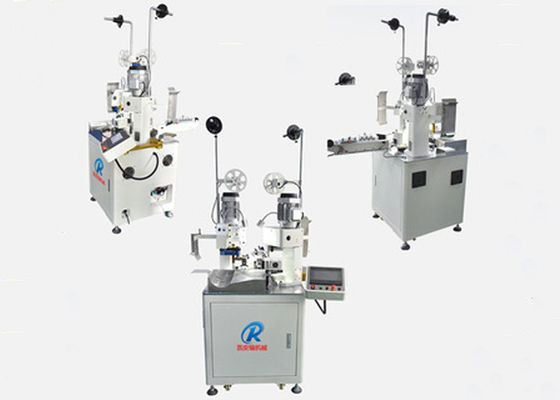

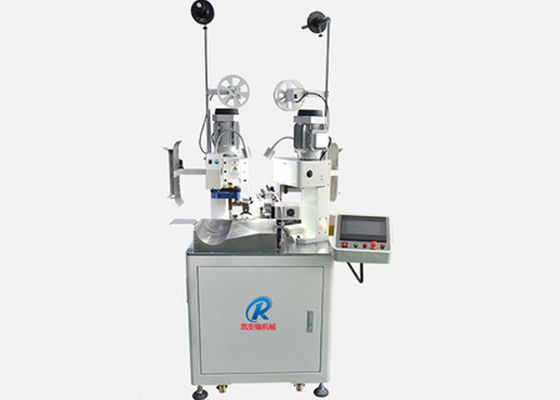

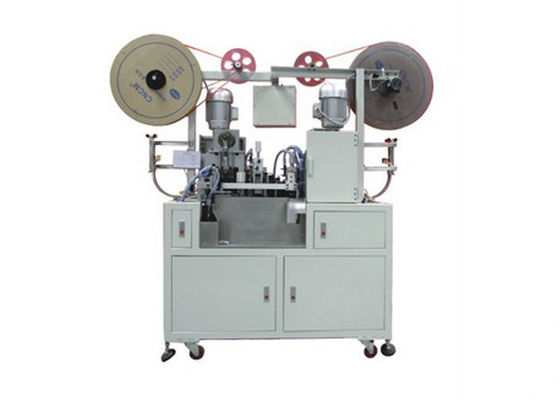

The manufacturer supplies automatic double head cable terminal machine, strip terminal machine, mute terminal machine
| model | KAR-06S |
| Power Supply | AC220V / 50Hz / 60Hz single phase |
| capacity | 4000-6000 pieces / hour (depending on the material) |
| Wire range | AWG#16-AWG#32 |
| Cutting line length | 32mm-9999mm |
| Cutting accuracy | 0.2±0.02 |
| Stripping Length | 0.1-9mm |
| Pressing capacity | 2 tons |
| Detection device | Detect whether there is wireless material, pressure, conduit and air pressure |
| Appearance dimension | L980*W700*H1310mm(Without protrusions) |
| weight | About 400kg |
| Tool material | Imported tungsten steel / high speed steel |
| Display mode | LCD (Chinese and English translation) |
| Applicable mould | OTP transverse mold, OTP direct mold, can be equipped with vibration plate |
Description of characteristics
The automatic line terminal pressing machine is a fully automatic multifunctional machine which integrates feeding, cutting, stripping and pressing end. Traditional line pressing terminal is manual operation, not only low efficiency, but also unstable product quality. Moreover, operators should continuously and highly concentrate on eye power to repeat the same action, and the eyes are easy to fatigue. The company has been operating in the online material terminal industry for many years, and has accumulated rich technology and experience. After more than 2 years, it has a wide potential: mainly used for pressing: pH, XH, eh, Zh and other color row communication harness terminals, Sn, SM, V DuPont and other connector line terminals
Cost saving: front end delivery, back end finished products, all processes are completed automatically, saving customers a lot of production costs
Good stability: the eccentric shaft and cam structure are used for end striking, and the terminal pressure force is balanced, so that the wire harness terminals are pressed neatly, with good consistency and very stable product quality. The machine is stable in operation and high in finished product rate. High precision: step motor is used to control cut-off, the stripping length of the split line is 0.1mm.
Precise position: servo motor driver is used to control the line travel, and the terminal is controlled accurately, which ensures the continuity performance of the wire harness and the line.
Various ways of striking end: use steering mechanism. Switch the direction of terminal pressing at both ends of the line
Automatic: automatic production, labor cost saving: cut off and peel off the line from the fixed length of the incoming and outgoing lines. The process of pressing double (single) head terminals is completed automatically without human participation.
Less land occupation: each equipment covers less than 2.5 square meters, saving the rent of the plant.
High efficiency: press 18000pcs / h (max), and the machine can work 24 hours.
Simple adjustment: ordinary employees only need simple training, can operate several machines one person.
Operation simplification: touch screen operation, parameter setting and operation
The whole process of foolishness, as soon as you see it.
