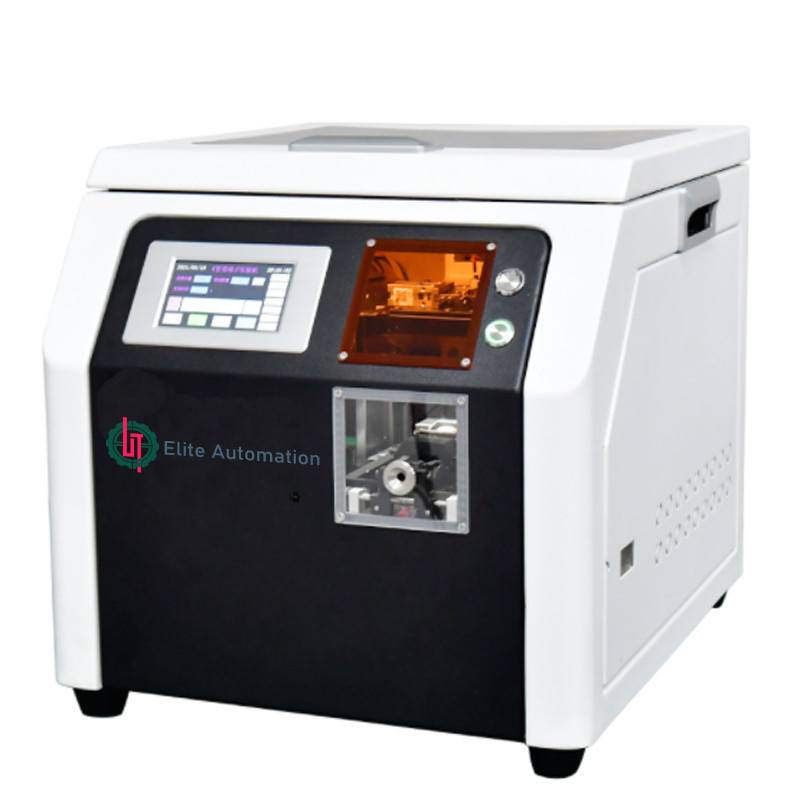

0.5 - 4.0M2 Round Tube Terminal Punching Machine

0.5 - 4.0M2 Round Tube Terminal Punching Machine
0.5 - 4.0M2 Round Tube Terminal Punching Machine 0.5 - 4.0M2 Round Tube Terminal Punching Machine 0.5 - 4.0M2 Round Tube Terminal Punching Machine

Large Image :  0.5 - 4.0M2 Round Tube Terminal Punching Machine

Product Details:
Place of Origin: China
Brand Name: KAR
Model Number: KAR
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: To be determined
Packaging Details: Wooden box
Delivery Time: 3day
Supply Ability: 99+tower+day

0.5 - 4.0M2 Round Tube Terminal Punching Machine

Product Name: Tube Type Automatic Peeling Terminal Crimping Machine Processing Range: AWG10-30#
Control Mode: Man Machine Interface, Electronic Control, Pneumatic Control Operation Mode: Automatic Operation + Manual Operation
Suitable For Wire: 0.5-4.0 M2 Suitable Terminal: The Length Of Terminal Insulator Is Within 7.5mm And The Length Of Conductor Is Within 10mm
Crimping Shape: Quadrilateral Crimping (imitation Square) Replace Product: There Is No Need To Change The Mold For Large And Small Terminals, And Manually Adjust The Vibrating Plate And Electric Memory
Throughput: 2.5s/piece (depending On The Single Operation Cycle Of The Machine) Test Items: Whether The Terminal Is Detected And Whether The Right Safety Door Is Opened
Working Temperature: 10-25 Degrees (ambient Temperature Of The Machine) Weight: 40KG
Power Supply: AC220V50/60Hz Product Size: 350*450*400
Gas Source: 06-0.8mpa (keep No Less Than 0.6MPa When Connected To Dry Air Source)
High Light:

4.0M2 Round Tube Terminal Punching Machine


0.5M2 Round Tube Terminal Punching Machine


4.0M2 Round Tube Terminal Puncher Machine

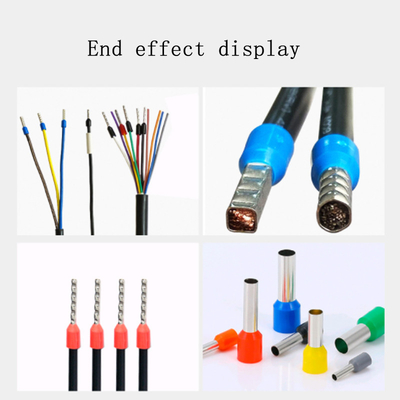

The peeling and end punching machine of round tube terminal is completed at one time

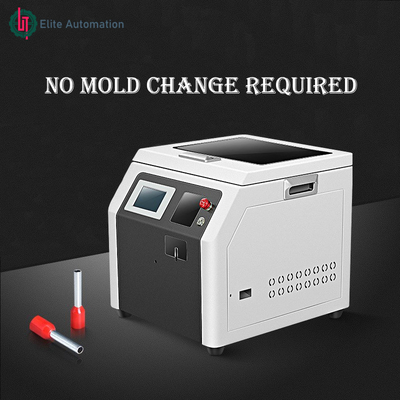

This machine is mainly used for round tube terminal punching. The stripping and punching of the wire is completed at one time, and the terminal within the range of 4.0 square meters does not need to change the mold.


Machine parameters
Product name Tube type automatic peeling terminal crimping machine
Processing range AWG10-30#
control mode Man machine interface, electronic control, pneumatic control
Operation mode Automatic operation + manual operation
Suitable for wire 0.5-4.0 M2
Suitable terminal The length of terminal insulator is within 7.5mm and the length of conductor is within 10mm
Crimping shape Quadrilateral crimping (imitation Square)
Replace product There is no need to change the mold for large and small terminals, and manually adjust the vibrating plate and electric memory
throughput 2.5s/piece (depending on the single operation cycle of the machine)
Test items Whether the terminal is detected and whether the right safety door is opened
working temperature 10-25 degrees (ambient temperature of the machine)
working temperature 30-80% HR (non condensing)
weight 40KG
Power Supply AC220V50/60Hz
Product size 350*450*400
Gas source 06-0.8mpa (keep no less than 0.6MPa when connected to dry air source)

Machine functions and features:
1. The whole machine is of closed design, safe and reliable operation.
2. touch screen operation, electrically adjust the peeling depth and length, and save the set parameters.
3. The terminal is supplied automatically, and the four sides of the terminal are crimped (imitation Square), without replacing the crimping die.
4. Agile automatic trigger, fast and convenient.
5. Semi automatic operation and manual setting out.
6. automatic induction peeling, terminal threading, crimping terminal and automatic feeding.

7.  Alarm reminder: when there is no terminal in the guide slot of the vibrating plate and the right door is not closed correctly, the machine will send an error alarm (can be closed). The machine will give an error alarm (can be switched off).

8. When the wire passes through the crimping interface and triggers the sensing device, the machine will automatically complete operations such as peeling and crimping terminals. To prevent ions from entering, and has high sensitivity.

9.  The company is a factory specializing in the production of wire rod processing equipment in Chinese mainland. It has 11 years of production experience and customer service. It mainly produces end beating machine, peeling machine, soldering machine, winding machine, wire cutting machine , etc.0.5 - 4.0M2 Round Tube Terminal Punching Machine 0
