Product Details:
|
| High Light: | Full Automatic Induction Pay Off Frame,Pay Off Reel Winding Rotation Frame |
||
|---|---|---|---|

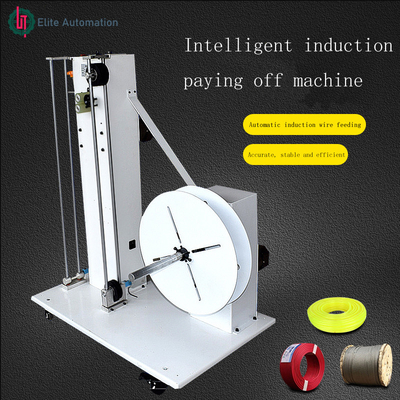

The independent machine does not need to be controlled synchronously with the host machine. The operation is simple and convenient. It can be used with various wire stripping machines, automatic terminal machines, end tin immersion machines, shell penetration machines and other machines from various manufacturers.
| product name | Four axis paying off machine |
| electric machinery | RV140W1: 15 |
| Specifications | 700*850*900 |
| Cold plate | 4.0mm |
| tension block | 400mm |
| axis | 20mm (stainless steel) |
| Thread passing wheel | V type 2-6.0mm |
| Induction block | 0.5kg |
| colour | White baking paint |
| bearing | Single axle 15kg |
| Setting out speed | 2m |
| Product name | Horizontal and vertical paying off machine |
| power | 120W |
| direction | Clockwise |
| Specifications | 500*500*900mm |
| bearing | >30kg |
| Applicable model | Terminal machine / wire cutting machine / pipe cutting machine |
| Applicable harness | Power cable, data cable, braided cable |
| Shaft diameter | 20mm/length 430mm |
| Reel diameter | 450mm |
| Product name | Automatic frequency conversion wire feeder |
| Specifications | 500* 700*900mm |
| electric machinery | 750W&1450/1: 5K |
| bearing | 60kg |
| weight | 75kg |
| brake | 0.1s braking |
| Frequency converter | 1.5W with brake |
| axis | 30* 500mm |
| Lock head | 60* 30mm |
| wire disc | 500mm |

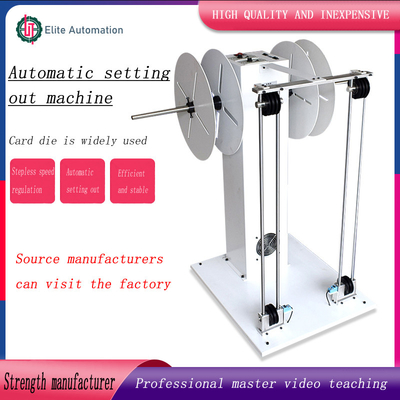

| Product name | Automatic setting out machine |
| Specifications | 370*480*800mm |
| power | 120w |
| Setting out weight | ≥40kg |
| weight | 30kg |
| Applicable machine | Automatic wire cutting machine, terminal machine |
| Voltage | 220V |
| effect | Induction automatic setting out |
| Scope of application | Data cable, flat cable, PC tube |
| drive | Positive and negative speed regulation |
| brake | Electronic brake |
| policy making | Coil diameter 20mm-30mm |
| product name | Automatic pay-off machine |
| strength | 120W/180W |
| Voltage | 220V |
| determine the direction | forward and backward |
| axis | 25mm |
| brake | 1.5 Electromagnetic clutch |
| load | ≥50kg |
| Specification | 800*500*900mm |

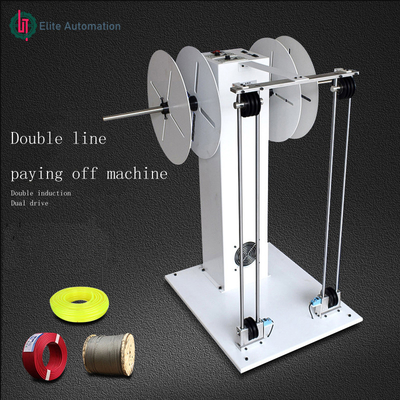

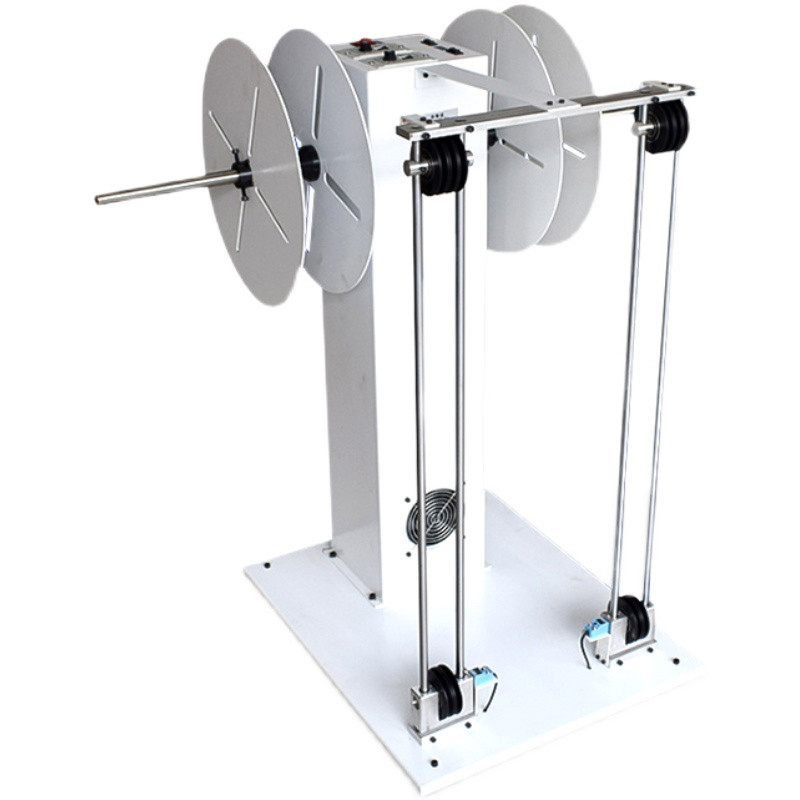

| product name | Double line automatic pay-off machine |
| strength | 140W/140W |
| direction | forward and backward |
| load | ≥30kg |
| Shaft diameter | 20mm |
| brake | virtual reality car |
| Specification | 650* 500* 900mm |
| product name | Stepless variable speed electric wire pay-off machine |
| Specification | 450*800*1120mm |
| motor | 750W 1: 7.5 |
| frequency converter | 1.5kw |
| Voltage | 220V |
| bearing | 50kg |
| brake | 0.1 second braking |
| axis | 30mm |

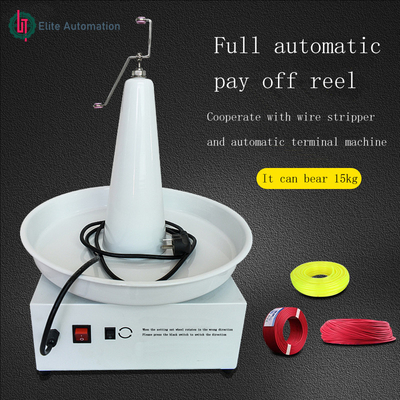

| product name | Fully automatic pay-off reel |
| Product Size | 390*390*500MM |
| product weight | 8.8KG |
| Product load | 14KG |
| Product Features | Applicable to all automatic machines and wire cutting machines (except flat parallel cables), no need to connect with the machine. It can independently identify wire feeding length (full closed loop control), high temperature wire, extra long wire, Teflon wire and other wires |
| Product number | pay off the scroll |
| shaft bottom diameter | 120MM |
| Turntable outer diameter | 380MM |
| net weight | 2.5KG |
| Turntable inner diameter | 350MM |
| material texture | Iron + high temperature paint |
| Purpose | Designed for automata |
