Product Details:
|
| Function: | Cable And Wire Pre-feeding For Wire Cutting Stripping Machines | Coil Outer Diameter: | 500-800mm |
|---|---|---|---|
| Coil Inner Diameter: | 53-85mm | Coil Clamping Width: | 320-620mm |
| Maximum Reel Weight: | 800KG | Packing Size: | 1850x2050x1560mm |
| High Light: | Dia38mm cable cutting and stripping machine,Dia38mm wire feeder machine,220V wire feeder machine |
||

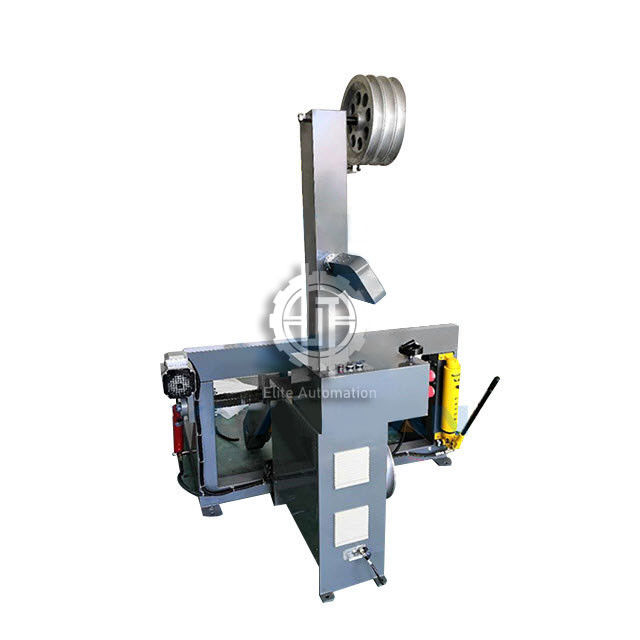

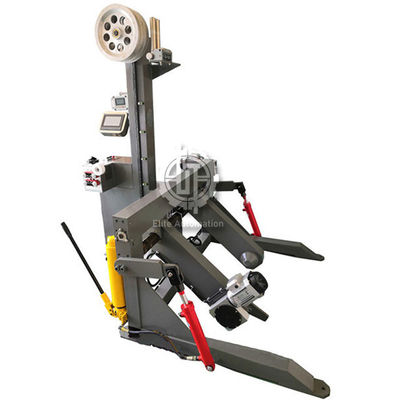

Automatic Wire Feeding Machine for Cable Cutting and Stripping Machine
This unit feeds wires and cables to wire and cable cutting and stripping machines automatically.
The tension wheel shifts in step with the wire cutting and stripping system, and the potentiometer rotates through the sprocket, feeding the signal back to the inverter, which controls the speed of the pay-off motor, allowing the wire-feeding to be synchronized with the wire cutting and stripping machine.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Function | Cable and wire pre-feeding for wire cutting stripping machines |
| Coil outer diameter | 500-800mm |
| Coil inner diameter | 53-85mm |
| Coil clamping width | 320-620mm |
| Maximum reel weight | 800KG |
| Max. wire dia. | 38mm |
| Voltage | AC110C/220V 50/60HZ |
| Weight | 450KG |
| Packing size | 1850x2050x1560mm |
