Product Details:
|
| Max Wire Diameter: | 10mm | Weight Capacity: | 80kg |
|---|---|---|---|
| Reel Outside Diameter: | 300-630mm | Reel Inner Diameter: | 63mm |
| Coil Thickness: | 300-630mm | Dimensions: | 125x115x143mm |
| Other Name: | Wire Feeding Equipment | ||
| Highlight: | H143mm Wire Feeding Machine,Coil t630mm Wire Feeding Machine,Coil t630mm wire processing machine |
||

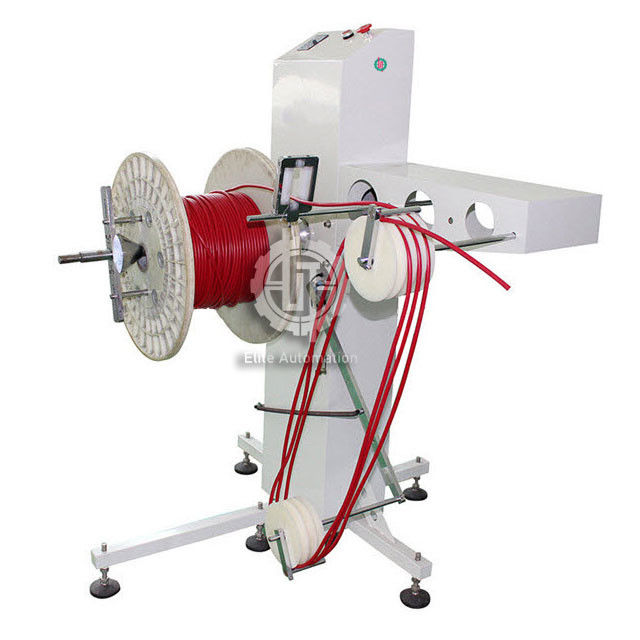

Automatic Wire Feeding Machine Wire Pay-off Stand with Brake Feature
For most wire harness processing needs, this automated wire feeding machine/wire pay-off stand is ideal. It's used to store multi-core and single-core cables on reels. It has a processing diameter of up to 10mm.
An integrated gas-electric automatic wire feeding machine with a brake feature.
Suitable for the majority of wire harness production applications. It's compact and portable.
This is mostly used to store multi-core and single-core cables on reels.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Max wire diameter | 10mm |
| Weight capacity | 80kg |
| Reel outside diameter | 300-630mm |
| Reel inner diameter | 63mm |
| Coil thickness | 300-630mm |
| Dimensions | 125x115x143mm |
| Weight | 120kg |
