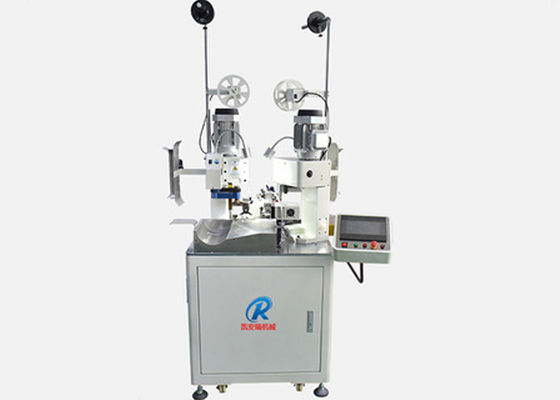

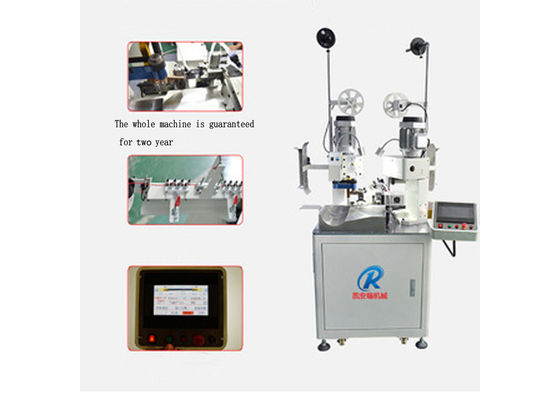

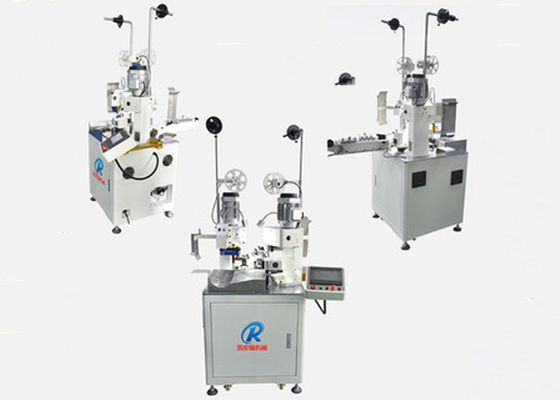

Product description

1. the machine adopts the imported top-level configuration: Mitsubishi PLC control, servo motor, human-computer interface, and Japanese SMC pneumatic components

2. THK track, Japan Xinbao reducer, Omron and kehens sensors in Japan

3. double head cutting line peeling single head with waterproof bolt double end punching terminal, pulling sheath, peeling and cutting material belt, easy to operate

4. detection device with abnormal peeling, pressure abnormal and air pressure abnormality

5. realize real full automation. Up to 1700 PCS / h

technical parameter

Model: kar-228

Control mode: PLC control

Terminal mould: OTP card type general mold and other mold

Capacity: 1300pcs/ hour (machine speed is related to length, wire material and terminal, and actual speed needs to test customer wire rod)

Applicable wire: awg12 × 26 × 2 (modifiable)

Terminal range: all continuous terminals (disc terminals)

Cutting range: 40mm-9999mm (otherwise required to be improved)

Cutting accuracy: ± 0.1mm+ cut-off length less than 0.2%

Peeling range: 1-17mm on 0.1-10 mm on one side and 1-17mm on 2 sides (depending on the line of sight material)

Detection device: detect the low air pressure, peeling, pressure terminal detection, feeding fault, eliminate all the bad shutdown abnormalities, and will be displayed on the frequency screen

Power supply: 220V single phase

Air pressure: 0.4map-0.5map

Weight: 450kg

Dimension: 1300W × 800D × 1330h (mm)

Description of characteristics

The automatic line terminal pressing machine is a fully automatic multifunctional machine which integrates feeding, cutting, stripping and pressing end. Traditional line pressing terminal is manual operation, not only low efficiency, but also unstable product quality. Moreover, operators should continuously and highly concentrate on eye power to repeat the same action, and the eyes are easy to fatigue. The company has been operating in the online material terminal industry for many years, and has accumulated rich technology and experience. After more than 2 years, it has a wide potential: mainly used for pressing: pH, XH, eh, Zh and other color row communication harness terminals, Sn, SM, V DuPont and other connector line terminals

Cost saving: front end delivery, back end finished products, all processes are completed automatically, saving customers a lot of production costs

Good stability: the eccentric shaft and cam structure are used for end striking, and the terminal pressure force is balanced, so that the wire harness terminals are pressed neatly, with good consistency and very stable product quality. The machine is stable in operation and high in finished product rate. High precision: step motor is used to control cut-off, the stripping length of the split line is 0.1mm.
