Product Details:
|
| Stripping Speed: | 1,500-2,500 Per Hour | Cutting Tolerance: | ±(0.002mm*L) (L=cutting Length) |
|---|---|---|---|
| Cutting Length Range: | 0-100 Meters | Large Catheter Diameter: | ø20mm |
| Stripping Length At Both Ends: | 0-300mm For Wire Head, 0-150mm For Wire Tail | Minimum Length Of Glue Retention: | 50mm |

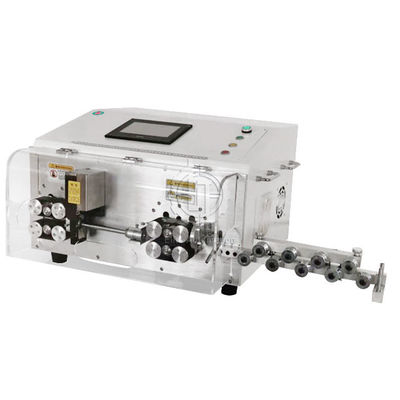

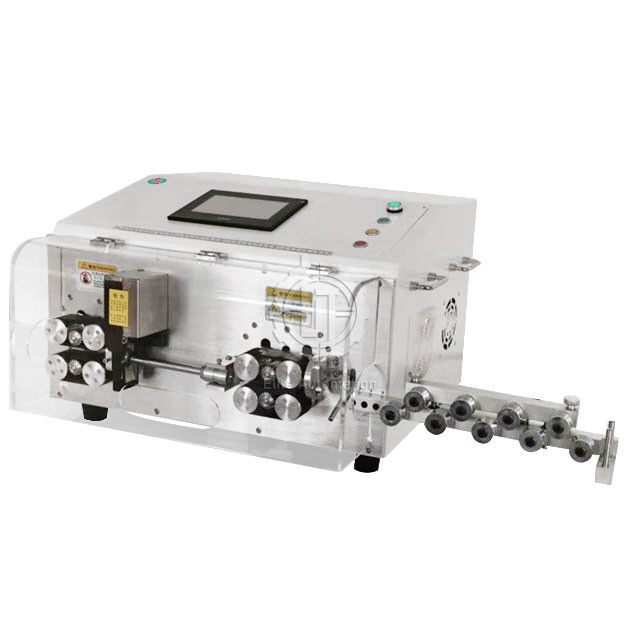

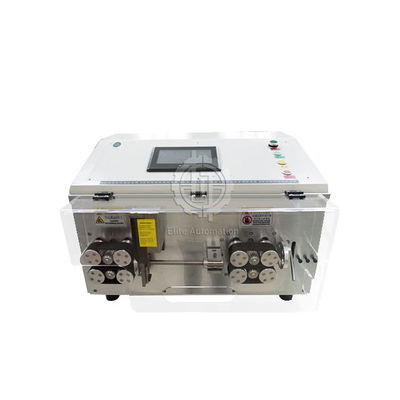

Wire Stripping Machine for Aircraft Cables with 12-Wheel Drive System
This unit has a 12-wheel drive system that provides a lot of power and precision. The belt feeding system can ensure that the surface of the wire is not damaged.
Military, medical, communications, power cables, sheathed wires, soft and hard wires are all processed with it.
The inlet and outlet wheel pressing forces can be set directly in the software, eliminating the need for manual wheel pressure adjustments. The outlet wheel also has an automatic lifting feature. When the wire is stripped, the outlet wheel will automatically raise up. As a result, the wire head's stripping length range has been greatly expanded. The outlet wheel's lifting height can also be set directly in the software.
The machine also has a three-layer stripping program, which can be divided into three layers, or the longest stripping length Three times of peeling; 100 groups of program memory functions are provided, and the processing parameters of different materials can be easily understood.
Branching jigs, cutting jigs, and inkjet printers are all options.
Please contact one of our sales representatives for more details. We will be delighted to assess your requirements and provide you with the most appropriate solution for your situation. Our company is also skilled at customizing all of our machines to meet your specific requirements. One of our main offerings is "Made-to-Order." You will discover that we are not only a manufacturer of equipment, but also a complete solution provider for your practical needs. We are looking forward to conducting research and having a conversation with you.
| Stripping speed | 1,500-2,500 per hour |
| Cutting tolerance | ±(0.002mm*L) (L=cutting length) |
| Cutting length range | 0-100 meters |
| Large catheter diameter | ø20mm |
| Stripping length at both ends | 0-300mm for wire head, 0-150mm for wire tail |
| Minimum length of glue retention | 50mm |
| Applicable wire | multi-strand copper wire, coaxial cable, sheathed wire, etc. |
| Display mode | 7-inch colorful PLC touch screen |
| Memory function | up to 100 groups of programs can be stored |
| Drive mode | 12-wheel drive, synchronous belt wire feeding |
| Applicable core area | BVR2.5.0-70mm2 (BV35 mm2, sheath wire outer diameter 18mm) |
| Blade material | imported high-speed steel |
| Dimensions | 700*640*480mm |
| Weight | about 100kg |
