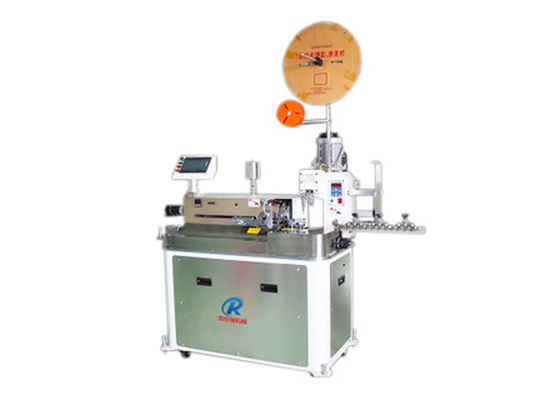

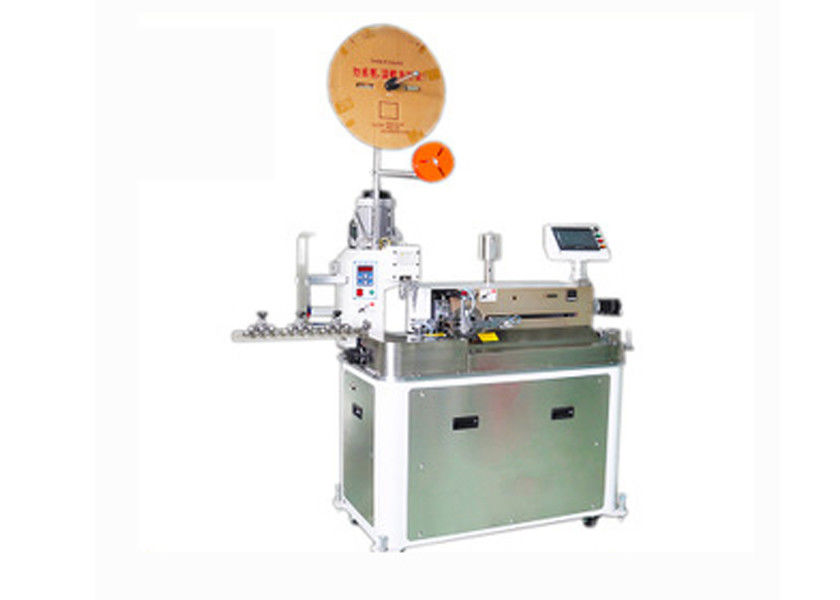

Automatic tin dipping machine

Automatic tin dipping machine
Automatic tin dipping machine Automatic tin dipping machine Automatic tin dipping machine Automatic tin dipping machine Automatic tin dipping machine

Large Image :  Automatic tin dipping machine

Product Details:
Place of Origin: Shenzhen, China
Brand Name: KAR
Model Number: KAR-05Z
Payment & Shipping Terms:
Minimum Order Quantity: 3platform
Price: Price according to customer's requirement
Packaging Details: Wooden case
Delivery Time: 2 weeks
Payment Terms: T/T
Supply Ability: 20 sets / day

Automatic tin dipping machine

Appearance Size: 1200*760*1380 Weight: 460kg
Tin Size: 1-20mm

Product advantages

First, compared with semi-automatic and old employees, it can save 2-3 workers and save human resources,

Second, it is very stable. After the initial commissioning, it only needs more maintenance. It can be used for a long time. Compared with the unstable factors of workers, the gap between the two is very large,

Third, the automatic tin dipping machine is equipped with protective devices to reduce the incidence of industrial injury,

Fourth, high output. The output of a full-automatic tin dipping machine is more than three times that of manual workers,

The above are the main advantages of Senjia machinery's automatic tinning machine. There are many other advantages, such as easy maintenance, durability, strong versatility, after-sales service, old for new and so on. In a word, the advantages of the current automatic tinning machine and automatic terminal machine are very large. If an enterprise wants to develop, it has to use fully automatic equipment.

[data parameters]

Power requirements: AC220V / 50 / 60H single phase

Basic functions: double thread cutting and tinning: single thread cutting and tinning

Output capacity: 16000 per hour, two parallel lines 8000 per hour

Wire diameter range: electronic wire diameter 0.38mm2.2mm

Cutting length: the cutting length is 10mm2000mm,

Wire stripping: 0.0 mm-10 mm

Tinning range: 0. Imm-10mm

Air pressure: 6kgf (clean and dry air required)

Body size: 600W × 850l1200h (mm)

Body weight: About 300kg

Features of full automatic tinning machine

1. 10 wire rods are installed in place, and the machine completes the cutting, tinning water and tinning, so as to realize unmanned operation

2. This model is the latest upgraded version of our company's self-developed line cutting and tinning machine. Compared with similar products, it is more stable, higher output, more convenient maintenance and more energy-saving

Simple operation, wire length, stripping length, tin depth, cutting speed, tin dipping time are all operated by touch screen

production capacity and high output value. A single pipe can cut 10 lines at a time, 16000 lines per hour, 5 lines per row and 8000 lines per hour.
