Alert NG Color Detection System , 9A Wire Harness Testing Equipment

Wire Harness Color Detection System with Vision Technology and Intelligent Algorithms

To ensure that the wiring sequence is 100 percent accurate, the wire sequence inspecting system uses vision technology and intelligent algorithms to assess compliance with preset requirements and automatically classify the color of the harness.

(1) Automatically classify the color of each wire in the harness and decide if the location is right in a systematic manner.

(2) Determine whether the wire terminal hole is inserted properly or incorrectly.

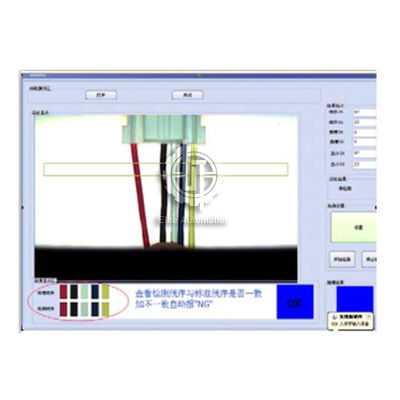

(3) Show the wire location of the bad line sequence automatically and issue an audible warning prompt NG

No need for a foot switch or other IO input trigger because it activates automatically once the material is stable.

The detection accuracy is good, and even if characters are written on the wire's surface, the device can discern the color line sequence accurately and remove character interference. 0.2s/pcs detection time

Without any specific positioning limits, you can position the harness to be checked in the inspection frame anywhere you want.

With its small size and light weight, the FM-9A will support I/O performance.

Anti-virus, integrated embedded computer, low power consumption (35W)

For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
