Product Details:
|
| Capacity (optional): | 10, 20, 50, 100, 200kg, 300kg, 500kg | Test Accuracy: | ±1％ |
|---|---|---|---|
| Displacement Resolution: | 0.001mm | Speed Accuracy: | ±1% |
| Test Speed Range: | 50-500mm/min Stepless Speed Regulation | Unit Switch: | Kg, Lb, N |
| High Light: | Single Column Wire Harness Tester,500kg Wire Harness Tester,500kg single column universal testing machine |
||

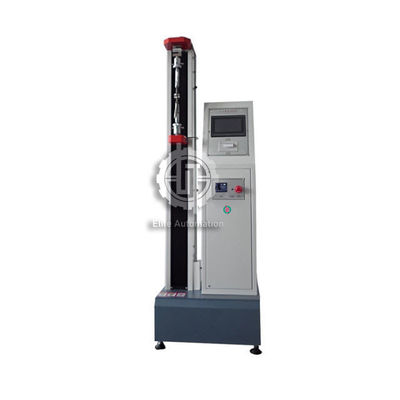

Automatic Overload Protection Floor Type Single Column Tensile Testing Machine
This system has a basic structure and is simple to run, and it can be mounted directly on the ground for testing, making it ideal for product quality control in the manufacturing line.
Wires and cables, rubber, plastics, textiles, waterproof materials, non-woven fabrics, and other non-metallic materials, as well as metal wire, metal foil, metal sheet, and metal bar, are all tested using the microcomputer tensile strength tester system.
Various finished goods may be measured for consistency by stretching, compressing, peeling, shearing, tearing, and other methods using special fixtures.
The computer will store the results of ten test reference points, calculate their average value, and calculate the maximum value and force value at the time of fracture automatically.
A thermal printer is included in the unit, which prints test results automatically (optional).
Changing units: kN/N/kgf/gf/t/lbf; mm/cm/in; mm/cm/in; mm/cm/in; mm/cm/in; mm/cm/in; mm/cm/in
Overload safety and automatic homing functions
Several test methods, such as fixed load and positioning change, are available.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Capacity (optional) | 10, 20, 50, 100, 200kg, 300kg, 500kg |
| Test accuracy | ±1％ |
| Displacement resolution | 0.001mm |
| Speed accuracy | ±1% |
| Test speed range | 50-500mm/min stepless speed regulation |
| Unit switch | Kg, lb, N |
| Data sampling frequency | 200 times/sec |
| Effective test width | 150mm |
| Effective stretching space | 800mm |
| Breakpoint ratio setting | 0～99％, users can set the appropriate breakdown time according to different materials |
| Test bench safety device | up and down stroke limiting device |
| Overload protection | Over 10% of maximum load, automatic machine protection |
| Displacement measurement accuracy | ±1％ |
| Fixture configuration | One set of stretching fixture |
| Dimension | 550×400×1820mm |
| Weight | About 120kg |
| Power | 220V/50Hz |
