Dia50mm / 25mm 198M3/H Shrink Tube Heater With Two Outlets

Dia50mm / 25mm 198M3/H Shrink Tube Heater With Two Outlets
Dia50mm / 25mm 198M3/H Shrink Tube Heater With Two Outlets Dia50mm / 25mm 198M3/H Shrink Tube Heater With Two Outlets

Large Image :  Dia50mm / 25mm 198M3/H Shrink Tube Heater With Two Outlets

Product Details:
Place of Origin: China
Model Number: EL-LDSHG
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: Wooden Case
Delivery Time: 2-3 weeks
Payment Terms: T/T

Dia50mm / 25mm 198M3/H Shrink Tube Heater With Two Outlets

Description
Heater Power: 2 × 2KW (power Adjustable) Air Outlet Size: Diameter 50mm 25mm (round Air Outlet, Optional)
Insulation Material: Double Insulation Cotton Heater Power Adjustment: Intelligent Temperature Regulation
Heating Wire Life: 100,000 Hours Blower: 50W
High Light:

Dia50mm Shrink Tube Heater

,

198M3/H Shrink Tube Heater

,

Dia50mm wire heating machine

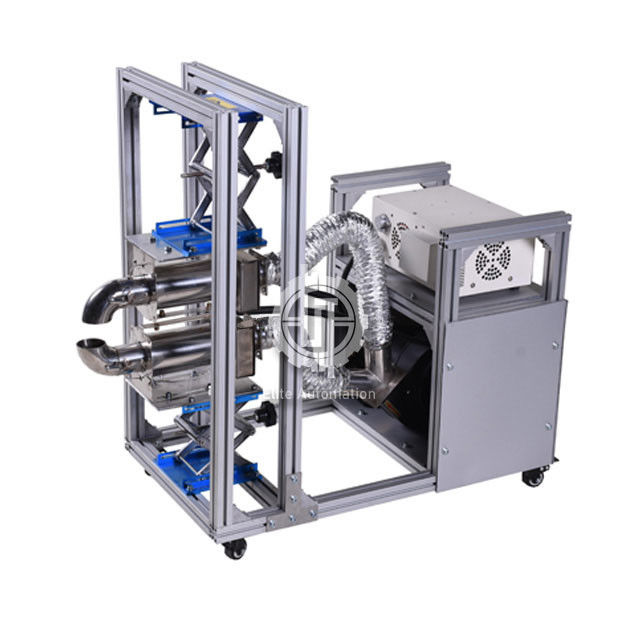

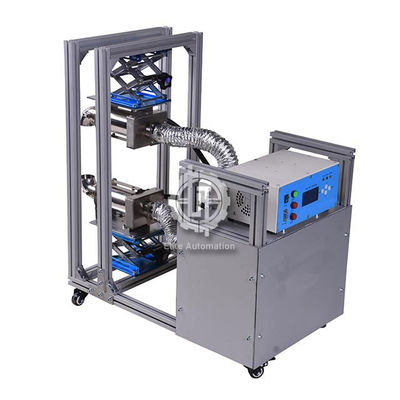

Large Diameter Size Heat Shrinkable Tube Heating Gun



The heat-shrinkable tube heating gun with two outlets is designed to heat large-diameter heat-shrinkable tubes and can heat several heat shrinkable tubes at once. This machine, which features one-time molding, uniform heating, high performance, rugged and reliable temperature control, can run nonstop for 24 hours, making it ideal for large-scale industrial production on the assembly line.



System for Temperature Control The air outlet is fitted with a temperature sensor, and the temperature can be changed as required using the intelligent digital display. The temperature is precisely regulated to within 2 degrees Celsius, and the working temperature is 395 degrees Celsius.



It has overheating overload control and a power-off protection system to ensure equipment safety, no waste gas, and environmental protection, and it can be used 24 hours a day.



For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.



Heater name Heating wire
Heater power 2 × 2KW (power adjustable)
Air outlet size Diameter 50mm 25mm (round air outlet, optional)
Insulation material Double insulation cotton
Heater power adjustment Intelligent temperature regulation
Heating wire life 100,000 hours
Blower 50W
Air volume 198M3/H, the actual air volume is about 98M3/H
Temperature table Digital control
Temperature control accuracy ±2°C
Blower static pressure 198pa
Number of hot air outlets 2
Air outlet direction Pair blowing (arbitrary adjustment of tuy distance)
Air volume rises 350 ° C
Bearing temperature <395°C
Power demand 220V
Machine power 4100W
Machine weight 15KG
