Single Side LCD Monitor Shrink Tube Heater 400mm Belt Width For Sleeves

Single Side LCD Monitor Shrink Tube Heater 400mm Belt Width For Sleeves
Single Side LCD Monitor Shrink Tube Heater 400mm Belt Width For Sleeves Single Side LCD Monitor Shrink Tube Heater 400mm Belt Width For Sleeves

Large Image :  Single Side LCD Monitor Shrink Tube Heater 400mm Belt Width For Sleeves

Product Details:
Place of Origin: China
Model Number: EL-SSHSM
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: Wooden Case
Delivery Time: 2-3 weeks
Payment Terms: T/T

Single Side LCD Monitor Shrink Tube Heater 400mm Belt Width For Sleeves

Description
Maximum Transmission Width: 450mm Maximum Transmission Height: 100mm (Adjustable)

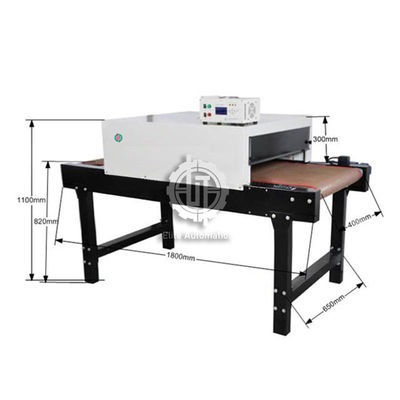

Conveyor: 1800*650*1150mm Heating Area: 1000*650mm
Outer Packing Size: 1890*950*730mm Belt Width: 400mm
High Light:

LCD monitor Shrink Tube Heater

,

400mm Belt Shrink Tube Heater

,

400mm Belt heat shrinking machine

Independent Control System Single Side Heat Shrink Sleeves Shrinking Machine



The intelligent temperature regulation one-side heat shrinkable tube heater is ideal for heating shrinkage of heat-shrinkable tube in the wire harness manufacturing industry. It can change the temperature to meet the needs of the manufacturing process, and it has a fast contraction period. It has the ability to shrink to any duration and operate nonstop for 24 hours. The heat shrinkable tube is heated uniformly thanks to omnidirectional reflective thermal materials.



Independent control system, LCD monitor, and intelligent digital temperature control

In the wire harness manufacturing industry, it's ideal for heating shrinkage of heat-shrinkable tube.

It can change the temperature to meet the needs of the manufacturing process, and it has a fast contraction period.

It has the ability to shrink to any duration and operate nonstop for 24 hours.



For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.



Maximum transmission width 450mm
Maximum transmission height 100mm (Adjustable)
Conveyor 1800*650*1150mm
Heating area 1000*650mm
Outer packing size 1890*950*730mm
Belt width 400mm
Conveyor belt Material FEP
Speed 1~5m/min
Heating pipe name Infrared heating tube
Heating pipe power 500W, , 8 branches8 branches
Transmission of motor power 90W (Stepless speed regulation)
Heating direction Top down, single side heating
Power demand 220V
Power 4200W
Size 1800*750*1280mm (Containing the air duct and motor)
