Product Details:
|
| Maximum Harness Heating Length: | 160mm | Maximum Harness Heating Diameter: | 40mm |
|---|---|---|---|
| Control Power Supply（L×W×H）: | 194×194×140mm | Heating Zone（L×W×H）: | 170×150×40mm |
| Security Level: | Grounding Wire | Heating Pipe: | Infrared Radiant Tube |
| High Light: | Infrared Shrink Tube Heater,160mm Wire Shrink Tube Heater,160mm Wire infrared heat machine |
||

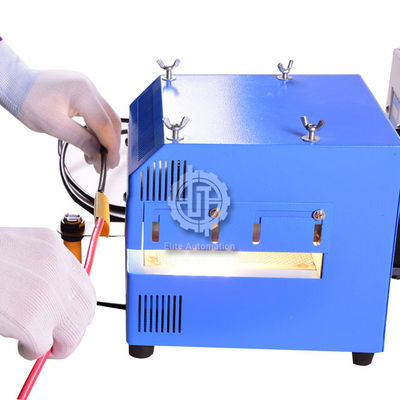

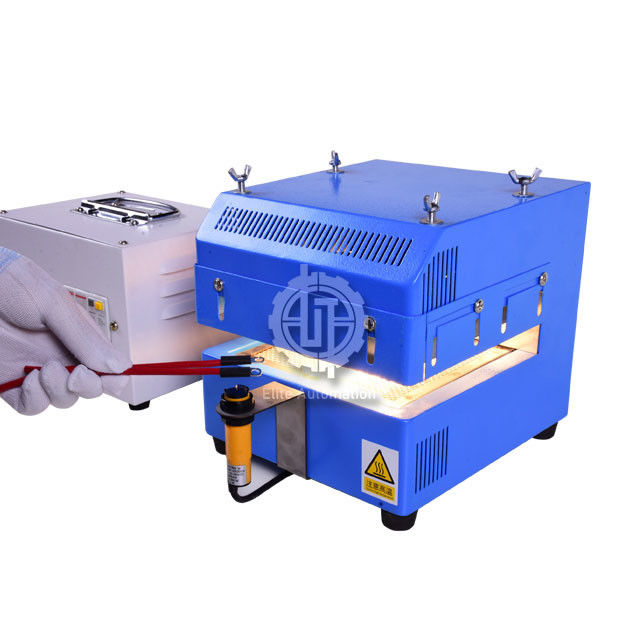

Infrared Heating Machine Shrinks Heat-shrink Tubing for Wire Harness
This shrink tubing oven is designed to heat heat-shrinkable tubes used in wire harness manufacturing. Working time and heating zone width can be customized to meet specific production needs. This infrared heating system will operate continuously for up to 24 hours.

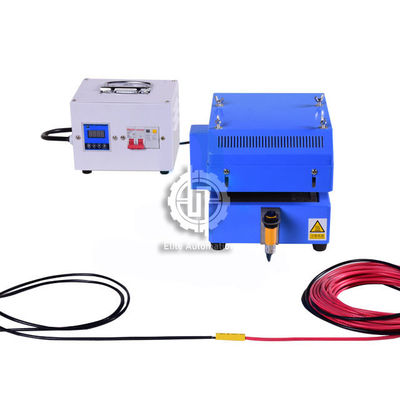

The machine's split design may be used independently from the heating system or on a large heating device as required, but the heating power must be less than or equal to the controller's rated output power
The heating and stopping times can be customized to meet your specific requirements. Manual activation or the automatic cycle heating start/stop mode are both options for starting the heating.
.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Maximum harness heating length | 160mm |
| Maximum harness heating diameter | 40mm |
| Control power supply(L×W×H) | 194×194×140mm |
| Heating zone(L×W×H) | 170×150×40mm |
| Security level | Grounding wire |
| Heating pipe | Infrared radiant tube |
| Heating tube power | 1600W |
| Power demand | 220V |
| Total power | 1700W |
| Size | 190×258×180mm |
