Table Top 445pa Heat Shrink Tubing Heater , 4.5KW Hot Wire Heating Machine

Table Top 445pa Heat Shrink Tubing Heater , 4.5KW Hot Wire Heating Machine
Table Top 445pa Heat Shrink Tubing Heater , 4.5KW Hot Wire Heating Machine

Large Image :  Table Top 445pa Heat Shrink Tubing Heater , 4.5KW Hot Wire Heating Machine

Product Details:
Place of Origin: China
Model Number: EL-HSTHM
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: Wooden Case
Delivery Time: 2-3 weeks
Payment Terms: T/T

Table Top 445pa Heat Shrink Tubing Heater , 4.5KW Hot Wire Heating Machine

Description
Heater: Electric Hot Wire Heater Power: 4.5KW (Power Adjustable)
Power Regulation: Adjust The Voltage Through A Potentiometer Air Outlet: Diameter 50mm 25mm (optional)
Insulation Layer: Double Layer Heat Preservation Maximum Wind Volume: 450M3/H, The Actual Air Volume Is About 380M3/H
High Light:

445pa heat shrink tubing heater

,

4.5KW heat shrink tubing heater

,

445pa wire heating machine

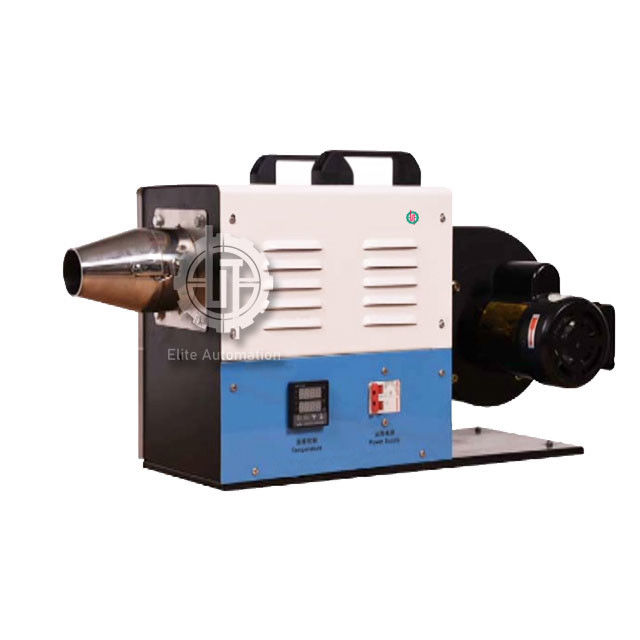

Table-Top Heat Shrink Tubing Heater



This table-top heat shrinkable tube heating system can be used to heat and contract heat shrinkable tubes and can be mounted on an assembly line. The temperature can be modified to meet the needs of the manufacturing process, and the blowing time is minimal. Any length of heat shrinkable tube can be used for it. It can run for up to 24 hours on a single charge and the power can be changed.

PE heat shrinkable tube, PVC heat shrinkable tube, and double wall heat shrinkable tube with glue connection and contraction PVC pipe and rubber cap shrink as a result of heat. Capacitors, batteries, terminal cables, and heat shrinkable sleeves / membranes are all heat shrinkable.



For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.



Heater Electric hot wire
Heater power 4.5KW (Power adjustable)
Power regulation Adjust the voltage through a potentiometer
Air outlet Diameter 50mm 25mm (optional)
Insulation layer Double layer heat preservation
Maximum wind volume 450M3/H, the actual air volume is about 380M3/H
Air volume regulation Manual wind valve
Static pressure 445pa
Temperature >380℃
Blower 200W
Heating wire life 100,000h
Power demand <430℃
Power Supply 4700W
Weight 15KG
Size 604*200*310MM
