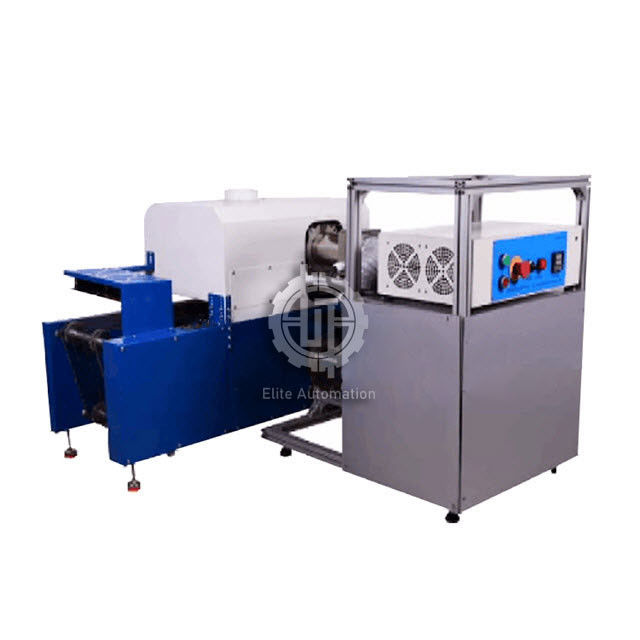

Double Wall Hot air Shrink Tube Heater Non Stop wire harness dia20mm

Double Wall Hot air Shrink Tube Heater Non Stop wire harness dia20mm
Double Wall Hot air Shrink Tube Heater Non Stop wire harness dia20mm Double Wall Hot air Shrink Tube Heater Non Stop wire harness dia20mm Double Wall Hot air Shrink Tube Heater Non Stop wire harness dia20mm Double Wall Hot air Shrink Tube Heater Non Stop wire harness dia20mm Double Wall Hot air Shrink Tube Heater Non Stop wire harness dia20mm

Large Image :  Double Wall Hot air Shrink Tube Heater Non Stop wire harness dia20mm

Product Details:
Place of Origin: China
Model Number: EL-DWHSM
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: Wooden Case
Delivery Time: 2-3 weeks
Payment Terms: T/T

Double Wall Hot air Shrink Tube Heater Non Stop wire harness dia20mm

Description
Maximum Wire Harness Diameter: 20mm Maximum Heating Width: <90mm
Heating Area: 400mm Cooling Zone: 200mm
Maximum Transmission Width: 250mm Maximum Transmission Height: <60mm
High Light:

Double Wall Shrink Tube Heater

,

Dia20mm Shrink Tube Heater

,

Dia20mm heat shrink tubing cutter

24 hours Non-Stop Double-wall Heat-shrinkable Tube Heating Machine

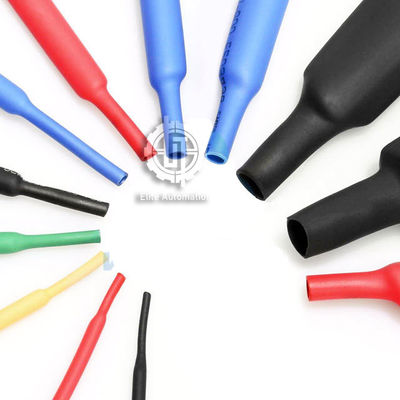

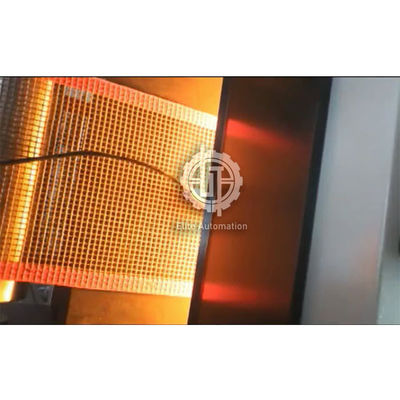

Heat high-temperature heat-resistant heat-shrinkable tube, wide diameter and long heat-shrinkable tube, double-wall heat-shrinkable tube, and heat-shrinkable tube with adhesive with the double-wall heat-shrinkable tube heater. The heating system and the conveyer work together to ensure that the heat shrinkable tube is precisely heated without damaging the wire. Suitable for mass manufacturing, continuous operation for 24 hours, the distance between the heating port and the conveyor belt can be varied in both vertical and parallel directions, and various sizes of heat shrinkable tube heating can be accommodated.



The unit is secure and durable, with double insulation and a solid machine shell that can operate in high temperatures for a long time.

The outlet has a temperature sensor that can change the temperature based on the user's needs. The temperature regulation precision is 1°C.

The unit has a time delay feature of downtime and blow drying in order to protect the heating core and extend its service life. The hair dryer can blow off for a minute after the system finishes working before it can be turned off.



The blower's air inlet is fitted with a manual air volume regulating valve, which allows the air volume to be changed to meet the needs.

It has overheating overload protection, power cut protection, emergency stop switch, and phase sequence protection, which ensures the equipment's safety, does not emit exhaust gas, and complies with environmental regulations. It can run continuously 24 hours a day, 365 days a year.

This system is equipped with auxiliary conveyors and can be used to heat shrinkable tubes of any size or shape.



For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.



Maximum wire harness diameter 20mm
Maximum heating width <90mm
Heating area 400mm
Cooling zone 200mm
Maximum transmission width 250mm
Maximum transmission height <60mm
Conveyor belt Stainless steel FEP optional
Speed 1~5m/min
The power of the motor 25W (Stepless speed regulation)(())
Heating Hot air
Heating pipe power 6000W,2 sets,2 setssets
Power supply 380V three phases four wires 50HZ
Power 12.3KW
Security Ground wire
Size 1250*320*360mm selective assembling

Double Wall Hot air Shrink Tube Heater Non Stop wire harness dia20mm 0
