Product Details:
|
| Function: | Wire Cutting, Stripping, Crimping, Tinning, Twisting, Housing Inserting | Capacity: | 2200 Pcs/hour |
|---|---|---|---|
| Wire Size: | Outside Diameter: 0.8-2.0mm (28#-20#) | Cutting Length: | 40-2000mm |
| Stripping Length: | 0.5-10mm | Dimension: | 1500L*1200W*1650H |
| High Light: | 40mm wire cutting stripping and crimping machine,2000mm wire cutting stripping and crimping machine,40mm cutting and crimping machine |
||

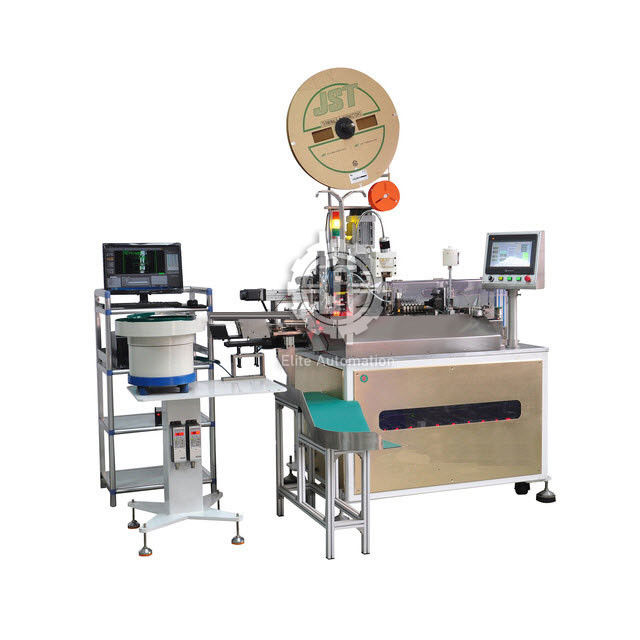

Single Head Terminal Crimping Tinning Housing Inserting Machine
Wire cutting, two-end peeling, single-head crimping, single-head tinning, and housing inserting are all possible with this fully automatic unit. Cutting lengths range from 40 to 2000mm, stripping lengths range from 0.5 to 10mm, and wire sizes range from 0.8 to 2.0mm (28# to 20#).
A detection system is included. A detection system is included.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Function | Wire cutting, stripping, crimping, tinning, twisting, housing inserting |
| Capacity | 2200 pcs/hour |
| Wire Size | outside diameter: 0.8-2.0mm (28#-20#) |
| Cutting Length | 40-2000mm |
| Stripping Length | 0.5-10mm |
| Dimension | 1500L*1200W*1650H |
| Pressure | 2T |
| Power supply | AC220V 50/60Hz |
| Air pressure | 0.5-0.7Mpa |
