Product Details:
|
| Function: | Continuous Single-end Terminal Crimping For Flat Cables | Wire Splitting Length: | 25mm Or Above |
|---|---|---|---|
| Cable Length: | Minimum 60mm (50mm Is Customizable) | Standard P Number: | 3-20P (20-40P Can Be Customized) |
| Capacity: | 12000 Terminals/hour | Dimensions: | 1400mm*800*1550mm |
| Highlight: | rj45 Flat cable crimping machine,20P cable crimping machine,20P rj45 crimping machine |
||

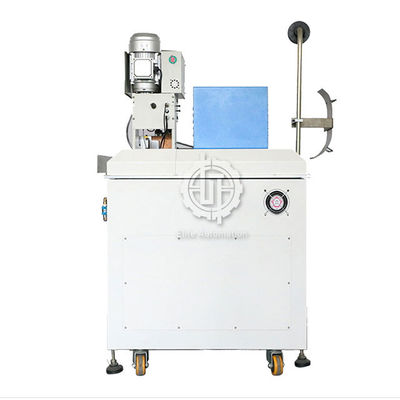

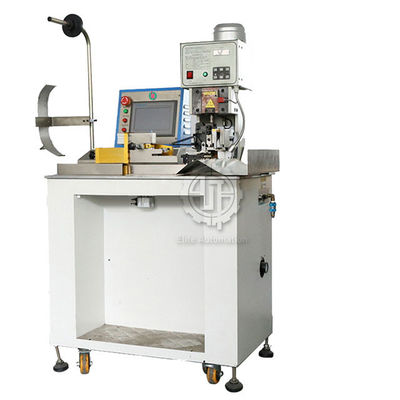

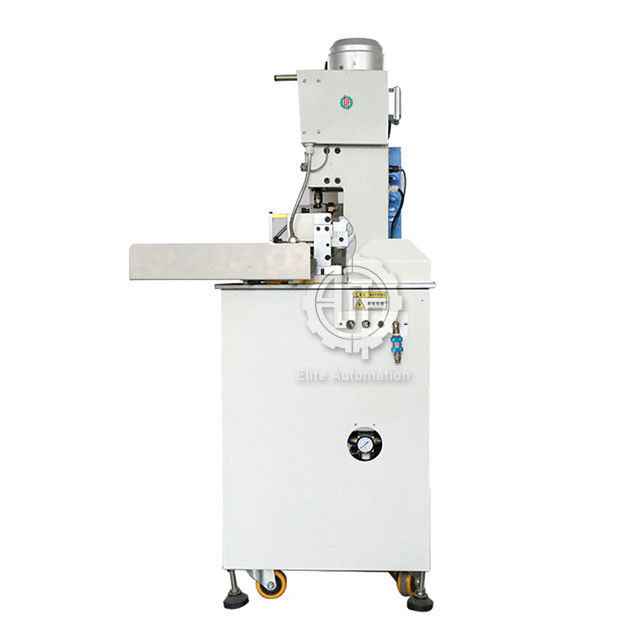

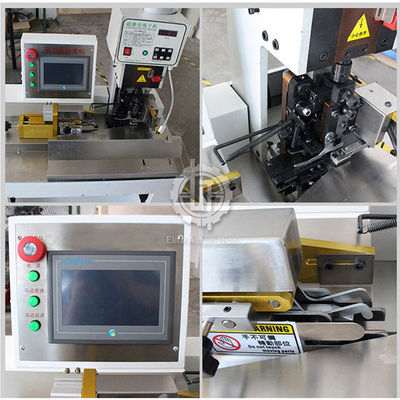

High Output Semi-automatic Flat Cable Terminal Crimping Machine

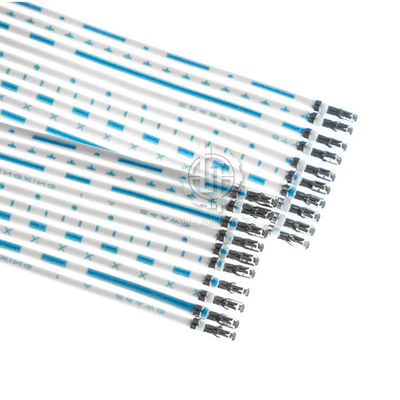

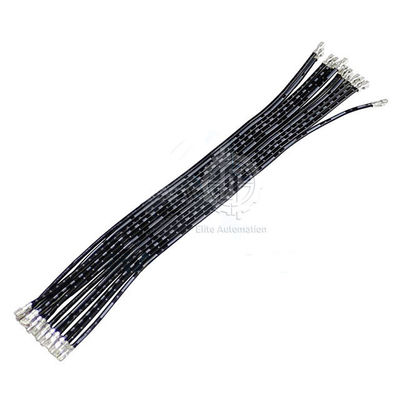

This semi-automated crimping system is ideal for crimping single-end flat cable terminals in a continuous manner. PH, EH, XH, SM, VH, ZH, DuPont terminals, and others are examples of terminals that can be used. 12,000 terminals per hour capacity.
Semi-automated processing saves time and money.
The terminals are pressed neatly and consistently, with good accuracy and consistency of quality.
The crimping pressure is precise thanks to the use of a stepper motor, ensuring consistent output. High throughput: 6K-10K pcs/hour
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Function | continuous single-end terminal crimping for flat cables |
| Wire splitting length | 25mm or above |
| Cable length | minimum 60mm (50mm is customizable) |
| Wire transfer | servo linear screw |
| Standard P number | 3-20P (20-40P can be customized) |
| Capacity | 12000 terminals/hour |
| Pressure | cylinder |
| Voltage | AC220V |
| Power supply | AC175V-250≤50/60HZ |
| Dimensions | 1400mm*800*1550mm |
| Weight | 130KG |
