Product Details:
|
| Crimping Range: | Max. 240mm2Max. 240mm | Crimping Force: | 40T |
|---|---|---|---|
| Crimping Accuracy: | ± 0.03mm | Crimp Control: | Digital Control |
| Motor Power: | 4.5kw Servo Motor | Reducer: | Planetary Reducer |
| High Light: | Tubular Terminals Wire Crimping Machine,40T Wire Crimping Machine,40T wire terminal crimping machine |
||

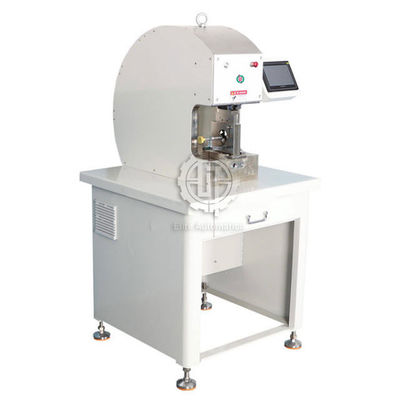

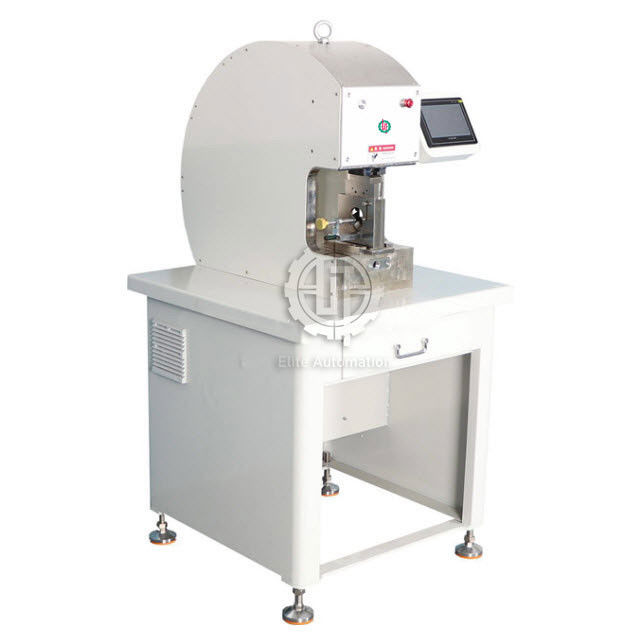

Servo Motor Driven Wire Connector Crimping Machine for Large Tubular Terminals
The cable connector crimping machine with servo motor is primarily used for crimping large tubular terminals.
To keep the system running smoothly, an industrial-grade control chip works in tandem with a high-precision servo motor.
The crimping set for various terminals can be changed instantly using a PLC control device.
There's no need to switch out the crimping applicator for various terminal sizes.

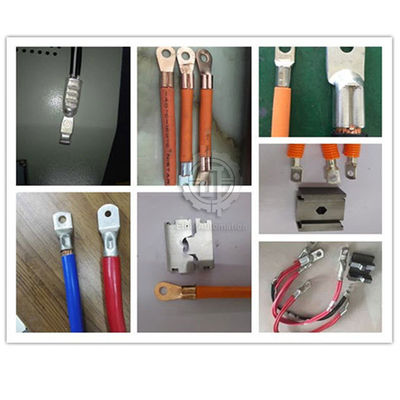

Hexagonal, quadrilateral, and M-shape crimping are all supported.
For various wire sizes, the location can be changed.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Crimping range | Max. 240mm2Max. 240mm |
| Crimping force | 40T |
| Crimping accuracy | ± 0.03mm |
| Crimp control | digital control |
| Motor power | 4.5kw servo motor |
| Reducer | planetary reducer |
| Slider stroke | 60mm |
| Speed | 10~30pcs/min |
| Power supply | 380V 50~60Hz |
| Weight | about 500kg |
| Size | 740*740*1500 (excluding protrusion) |
