Product Details:
|
| Waterproof Clasp Size(Diameter*Length): | ≤φ16*15（Max) | Power Supply: | AC 220/110V, 50/60Hz |
|---|---|---|---|
| Power Rating: | 80W | Air Supply: | 0.5~0.7Mpa |
| Dimension: | L600*W600*H260 | Weight: | 35KG |
| High Light: | 0.7Mpa Wire Crimping Machine,0.5Mpa Wire Crimping Machine,semi automatic wire crimping machine |
||

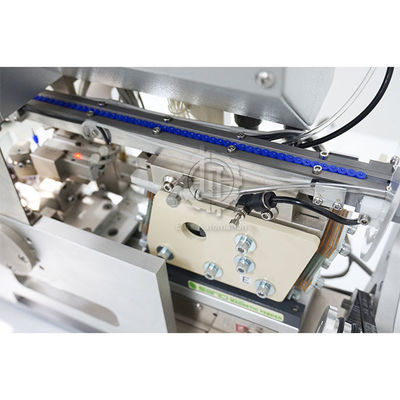

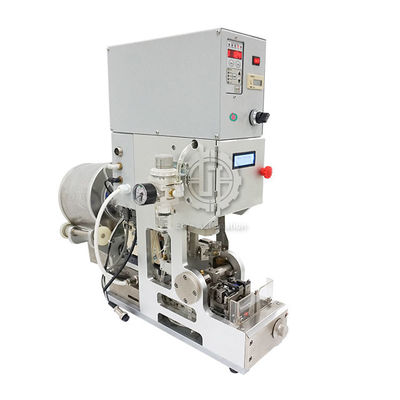

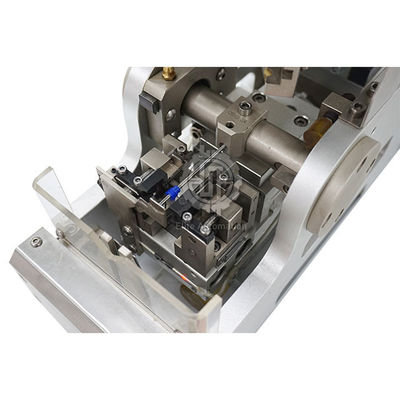

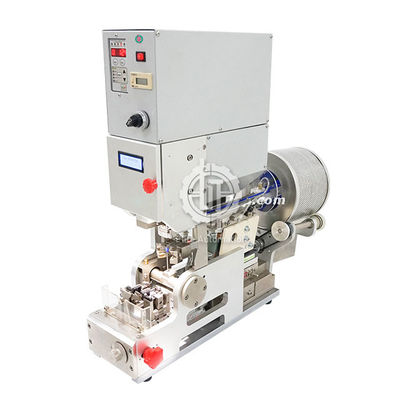

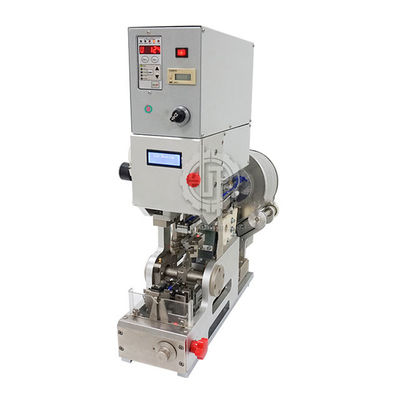

Semi-automatic PLC Controlled High Precision Rubber Wire Seals Inserting Loading Machine
This is a computer that loads wire waterproof seals semi-automatically. It uses PLC automation tools to ensure high precision and speed when inserting waterproof plugs.
The fault can be identified and shown automatically.

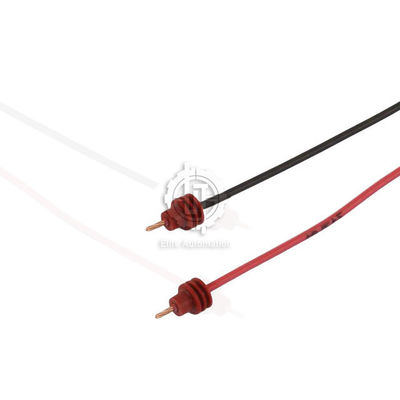

It has the ability to mount hard shell waterproof plugs and remove wire sheaths.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Waterproof Clasp size(Diameter*Length) | ≤φ16*15(Max) |
| Power Supply | AC 220/110V, 50/60Hz |
| Power Rating | 80W |
| Air Supply | 0.5~0.7Mpa |
| Speed | 70pcs/min |
| Dimension | L600*W600*H260 |
| Weight | 35KG |
