Product Details:
|
| Nominal Pressure: | 1500KG | Stroke: | 30mm (40mm Is Customizable) |
|---|---|---|---|
| Frequency Power: | 550W | Motor Power: | 550W |
| Power Supply: | 220V/50Hz, 110V/60Hz | Dimensions: | 220*250*600 Mm |
| High Light: | 550W Wire Crimping Machine,1.5Ton Wire Crimping Machine,1.5Ton semi automatic terminal crimping machine |
||

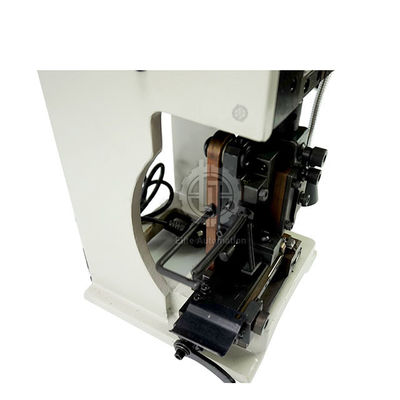

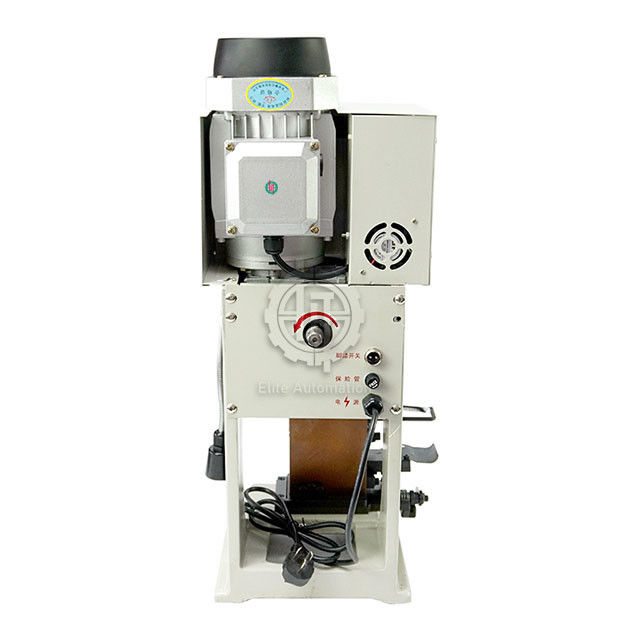

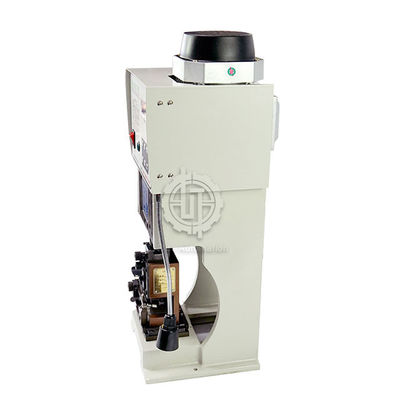

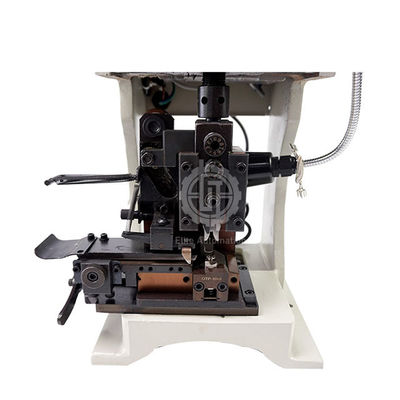

Semi-Automatic Low Noise Terminal Crimping Vertical or Horizontal Machine
The semi-automatic mute terminal crimping machine will crimp electronic, DC, and AC terminals, as well as single grain and joint terminals. It works with both vertical and horizontal molds, and by removing the crimping molds, one machine can handle all terminal sizes.
Molds are simple to modify, and the process is quick and effective.
Low noise, stable voltage, good speed, high accuracy

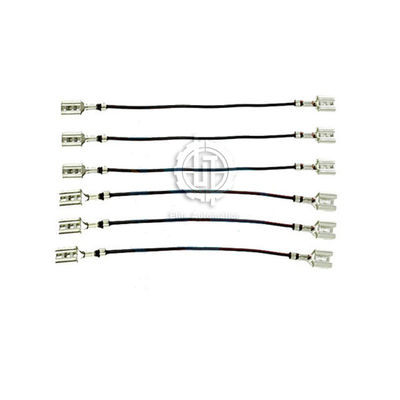

Crimping computer terminals, DC terminals, AC terminals, single grain terminals, and joint terminals are all possible with this tool. Crimping machine terminals, DC terminals, AC terminals, single grain terminals, and joint terminals are all possible.
OTP transverse mode, OTP positive mode, OTP reverse mode, and 2000# mold are all compatible.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Nominal Pressure | 1500KG |
| Stroke | 30mm (40mm is customizable) |
| Frequency Power | 550W |
| Motor Power | 550W |
| Power Supply | 220V/50Hz, 110V/60Hz |
| Output | 1.5 Ton, (2.0 Ton, 3.0 Ton, 4.0 Ton, 8.0 Ton are the other options) |
| Dimensions (MM) | 220*250*600 |
