Product Details:
|
| Function: | Wire Cutting, Stripping, Twisting, And Tinning At One Time | Stripping Length: | 2mm-9mm |
|---|---|---|---|
| Applicable Wire: | H03VVH2-F, H05WH2-F, H03VV-F, RVV, VFF, Three-core Round Wire, Flat Wire | Tinning Length: | 2mm-9mm |
| Maximum Splitting Size: | 50mm | Productivity: | 1700-2000 PCS/H |
| High Light: | 9mm Wire Crimping Machine,h03vvh2 f Wire Crimping Machine,9mm wire fully automatic crimping machine |
||

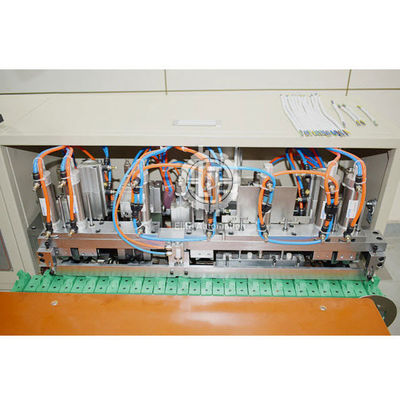

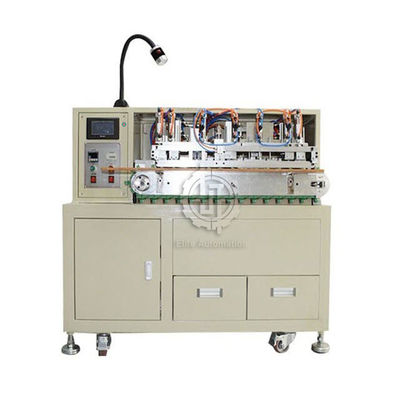

High Automation Multi-core Cable Stripping Twisting and Tinning Machine

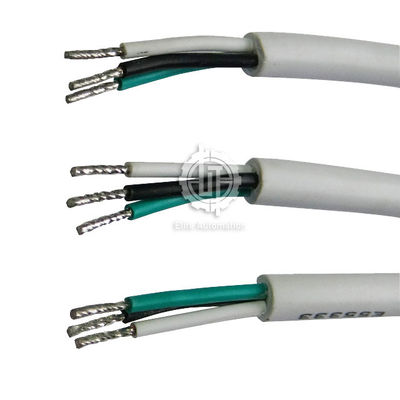

This system is primarily used to process three-core round sheathed cables. At the same time, it can break the wire, peel the outer and inner skin, twist, and tin. This system is primarily used to process three-core round sheathed cables. At the same time, it can break the wire, peel the outer and inner skin, twist, and tin.
Compact design, high precision, and fast positioning speed
Tin furnace with high strength, fast temperature recovery, and high control accuracy
Stable efficiency, high performance, high automation, and manpower savings
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Function | Wire cutting, stripping, twisting, and tinning at one time |
| Stripping length | 2mm-9mm |
| Applicable wire | H03VVH2-F, H05WH2-F, H03VV-F, RVV, VFF, three-core round wire, flat wire |
| Tinning length | 2mm-9mm |
| Maximum splitting size | 50mm |
| Productivity | 1700-2000 PCS/H |
| Voltage | AC220V / 50HZ |
| Motor | 0.75KW |
| Weight | 300kg |
| Dimensions | 1200×630×1300mm |
