Product Details:
|
| Applicable Range: | 0.5mm2 – 2.5 Mm2 | Power: | AC220V/50HZ Single Phase |
|---|---|---|---|
| Gas Source: | 0.5-0.8Mpa (please Use Clean And Dry Air) | Capacity: | Cable Stripping, Terminal Inserting And Terminal Crimping Are Finished In 2.5 Seconds |
| Dimensions: | L450mm X W350mm X H425mm | Weight: | 40kg |
| High Light: | 2.5mm2 wire terminal crimping machine,40kg wire terminal crimping machine,2.5mm2 cable crimping machine |
||

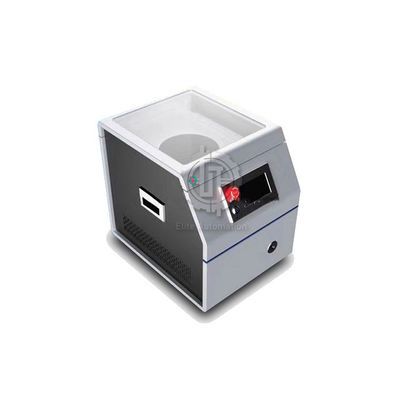

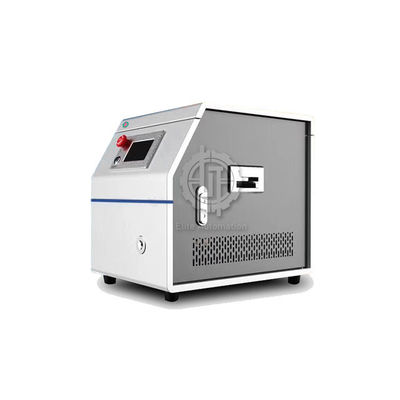

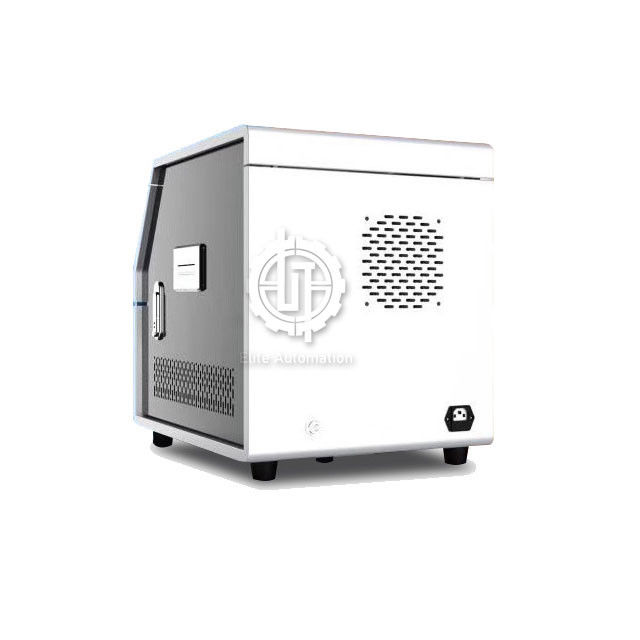

Pre-Installed Loose Tubular Terminal Crimping Machine

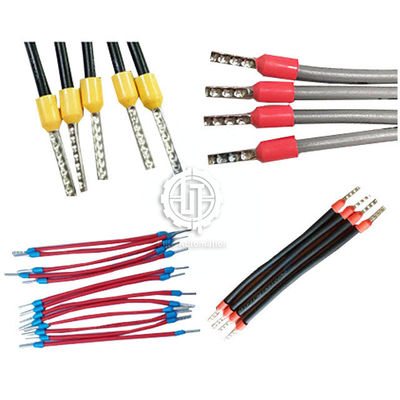

This pre-insulated terminal crimping machine will crimp a wide range of loose tubular terminals to cables.
Wire stripping and crimping can be completed in a single step.
There is no need to repair the crimping die since the terminals are crimped on all four sides.
Automatically change stripping depth and volume, as well as crimping height, using the LCD display.

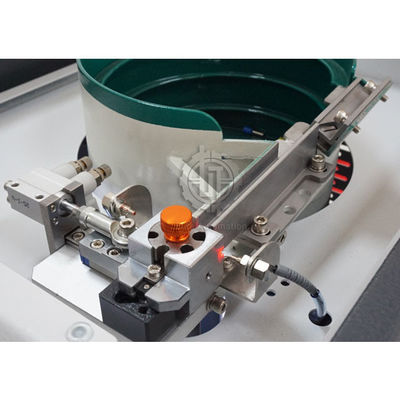

Vibrating plate feeding saves time and effort, and terminal replacement is simple and fast.
Completely sealed stripping and crimping, which is both secure and dependable.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Applicable Range | 0.5mm2 – 2.5 mm2, 4.0 mm2(Terminal conduit length should be less than 10mm)4.0 mm |
| Power | AC220V/50HZ single phase |
| Gas source | 0.5-0.8Mpa (please use clean and dry air) |
| Capacity | Cable Stripping, Terminal Inserting and Terminal Crimping are finished in 2.5 seconds |
| Dimensions | L450mm x W350mm x H425mm |
| Weight | 40kg |
