Product Details:
|
| Function: | Membrane Switch Single End Crimping | Standard P Number: | 2P-20P |
|---|---|---|---|
| Crimp Force: | 2.0T | Dimensions: | 600*400*650mm |
| Weight: | 65KG | Power Supply: | AC220V, 50/60Hz |
| Highlight: | 2.0T Wire Crimping Machine,2P Wire Crimping Machine,2.0T automatic crimping tool |
||

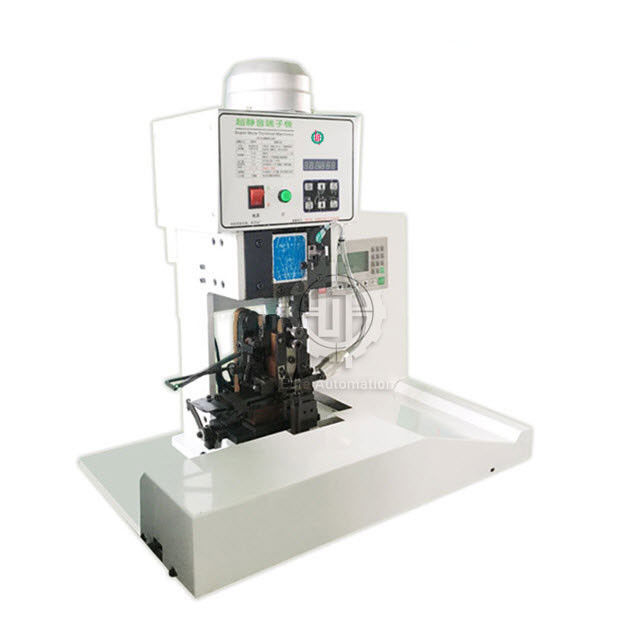

Crimping Machine for Membrane Switched Flexible Circuits

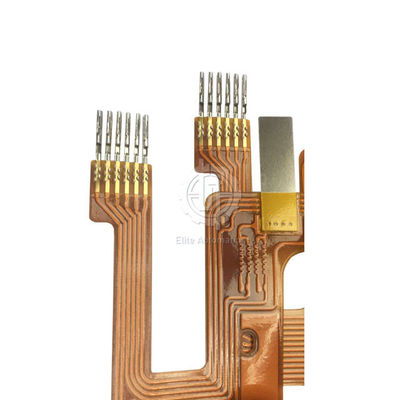

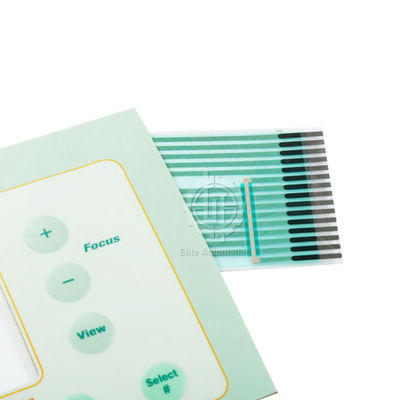

This is a semi-automated machine for crimping connectors onto the flexible tail or flexible circuit of membrane switches.
The terminals are pressed neatly and consistently, with good accuracy and consistency of quality.
High-precision inverter, SMC pneumatic parts, and a PLC control system are used.
The crimping pressure is precise thanks to the use of a stepper motor, ensuring consistent output. High throughput: up to 10K pcs per hour
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Function | Membrane switch single end crimping |
| Standard P number | 2P-20P |
| Crimp force | 2.0T |
| Dimensions | 600*400*650mm |
| Weight | 65KG |
| Power supply | AC220V, 50/60Hz |
| Power | 750W |
