Product Details:
|
| Wire Range: | 10-120mm² | Max. Diameter: | 38mm |
|---|---|---|---|
| Crimping Force: | 200KN | Crimping Width: | 12.5mm (Customizable) |
| Power: | 220v50Hz | Dimension: | Dimension 700×860×1260mm |
| High Light: | 200KN cable crimping machine,Hexagon Edge automatic ferrule crimper,200KN automatic ferrule crimper |
||

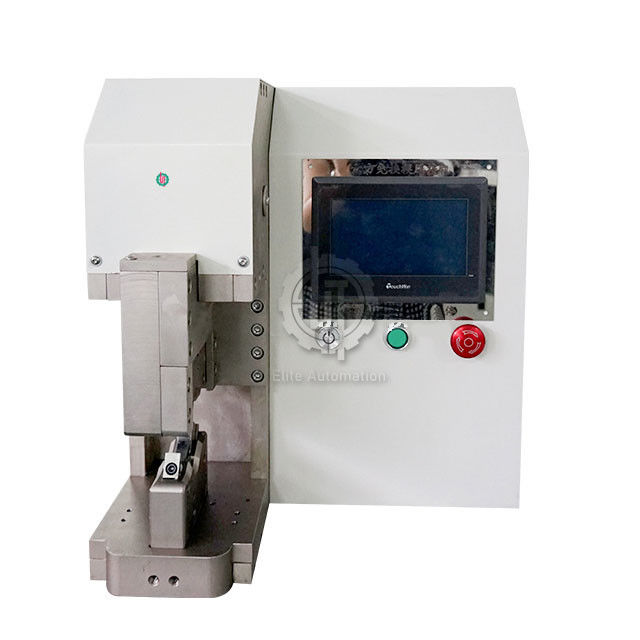

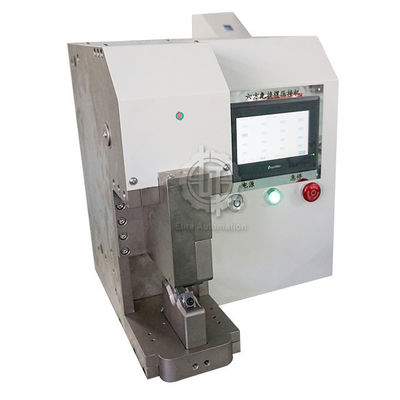

No Need Die Adjustment Hexagon Edge Cable Crimping Machine

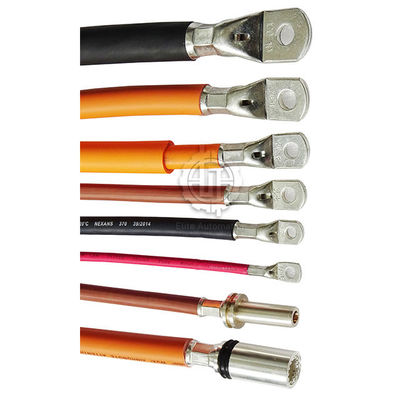

With no need to adjust die sets, this hexagon edge cable crimping machine will crimp non-standardized terminals and compression style terminals. The wire range that can be used is 10-120mm2.
Separated crimping interface for intermediate junctions, as well as new energy right angle terminal crimping; The field of view is clearer and it is possible to change the position. Structure that is compact, space-saving, and low-noise
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Wire range | 10-120mm² |
| Max. diameter | 38mm |
| Crimping force | 200KN |
| Crimping width | 12.5mm (Customizable) |
| Power | 220v50Hz |
| Motor | 2300w |
| Weight | 160kg |
| Dimension | 700×860×1260mm |
