Product Details:
|
| Function: | Double Ends Stripping, Double Ends Crimping, Single End Half Stripping, Single End Crimping. | Stripping Length: | 1.5~10 Mm |
|---|---|---|---|
| Feeding Speed: | Max.6.0 M/s | Wire Range: | 0.3-2.5mm2 (AWG23-AWG13) |
| Cutting Precision: | （±0.2%*L+1）mm | Dimension: | 700 X 800 X 1500mm |
| High Light: | 6m/S Wire Crimping Machine,5m Wire Crimping Machine,6m/S automatic ferrule crimper |
||

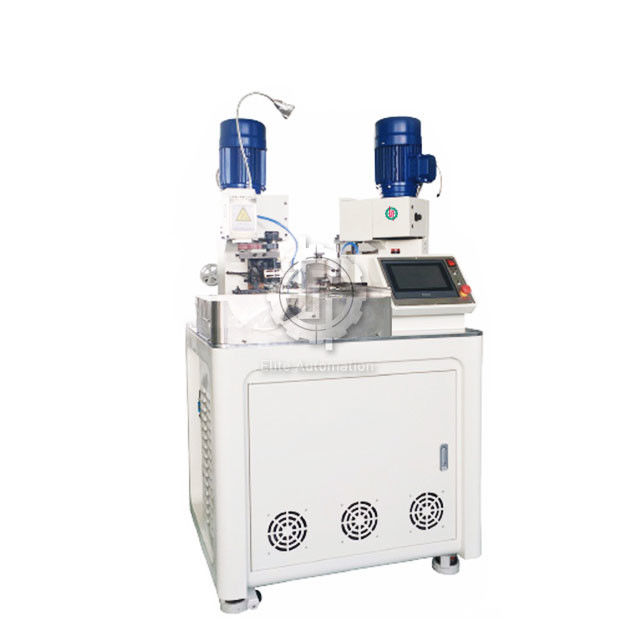

Fully Automatic Single Wire Two-end Insulated Ferrules Crimping Stripping Machine
This is a fully automatic wire cutting, stripping, and crimping unit with two ends. Range of wires that can be used: 0.3-2.5 sq mm (AWG23-AWG13).
To achieve double-end crimping at the same time, a PLC control device is used.
Beautiful architecture, exquisite appearance, lightweight construction, space saving
Fast to use computer touch screen, DSP microcontrol menu
Replacement parts are simple and fast, and complete digital troubleshooting and maintenance are simple.
Stepper drive that is effective, precise, and quick
SMC pneumatic components were imported from Japan.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Function | double ends stripping, double ends crimping, single end half stripping, single end crimping. |
| Stripping length | 1.5~10 mm |
| Feeding speed | Max.6.0 m/s |
| Wire range | 0.3-2.5mm2 (AWG23-AWG13) |
| Cutting length | 3000-3500mm |
| Cutting precision | (±0.2%*L+1)mm |
| Crimping force | 20KN |
| Capacity | 4500 pcs/h (within length 100mm) |
| Voltage | 220V 50HZ |
| Dimension | 700 x 800 x 1500mm |
| Weight | 300kg |
| Motor | 0.75KW |
