Product Details:
|
| Wire Size: | AWG#28-AWG#16 | Stripping Length: | 1.5-10 Mm |
|---|---|---|---|
| Crimping Force: | 2.0/3.0 Ton | Cutting Length: | 50-9999 Mm |
| Cutting Tolerance: | Range Of Change: Within 1mm + Cut Length X 0.2% | Dimension: | 700Wx800Lx1500H Mm |
| High Light: | 6kgf wire lug crimping machine,6kgf lan cable crimping machine,AWG28 lan cable crimping machine |
||

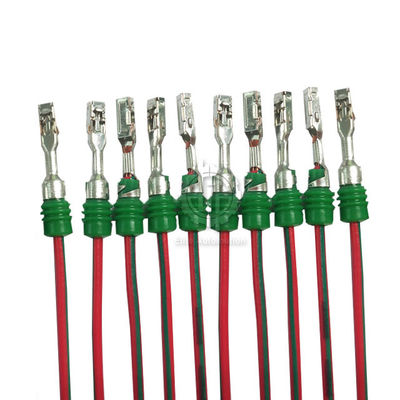

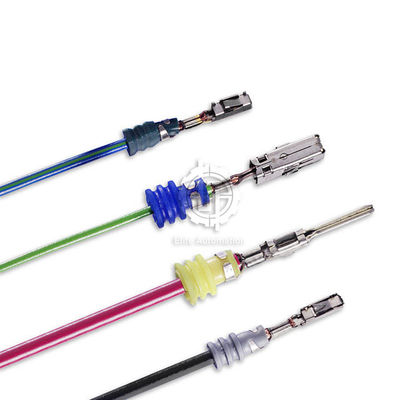

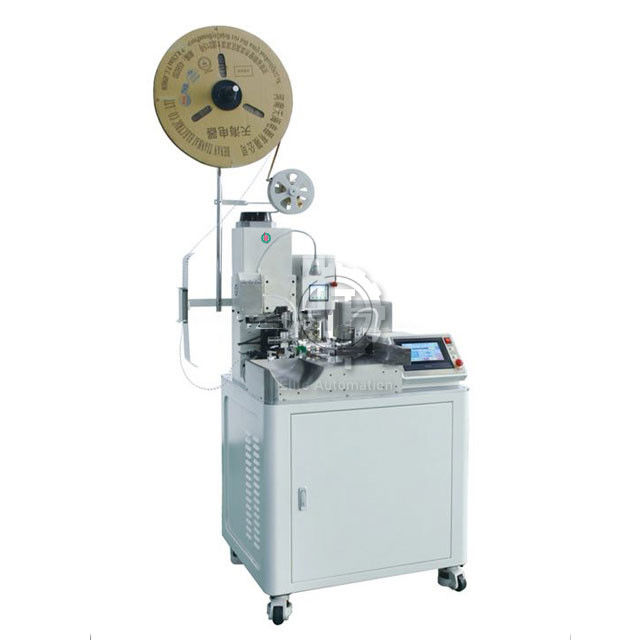

Completely Automatic Wire Lugs Crimping and One End Seal Insertion Machine

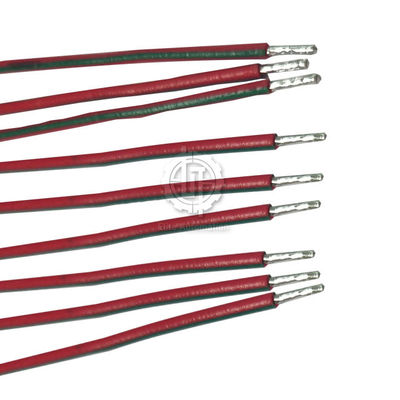

This wire cutting, stripping, single end water seals loading, and terminal crimping system is completely automated.
Design is compact, the principle is fantastic, and it saves energy.
Change procedures and materials as needed.
High precision, fast speed and efficient stepper drive
Maintenance is easy.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Wire size | AWG#28-AWG#16 |
| Stripping length | 1.5-10 mm |
| Crimping force | 2.0/3.0 Ton |
| Cutting length | 50-9999 mm |
| Cutting tolerance | Range of change: within 1mm + cut length x 0.2% |
| Air pressure | 4-6kgf (use clean dry air) |
| Dimension | 700Wx800Lx1500H mm |
| Net weight | About 348 KG |
| Power supply | AC220V/50/60HZ (110V/60Hz optional) |
| Capacity | 3000 pieces/hour(Length within 100mm) |
