Product Details:
|
| Splitting Length: | 25-30mm | Stripping Length: | 1-7mm |
|---|---|---|---|
| Pin No.: | 2-12 Pins | Speed: | 3,000-5,000 Terminals/h |
| Available Wire Diameter: | Inner Cores: φ 0.8-4mm | Dimension: | 65*45*135cm |
| High Light: | 2pins wire terminal crimping machine,2T wire terminal crimping machine,2pins rj45 automatic crimping machine |
||

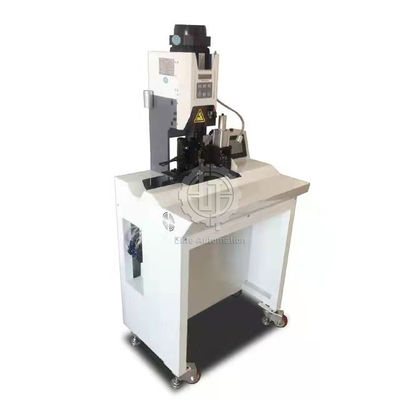

Splitting and Crimping Machine for Flat Cables
This is a semi-automated flat cable terminal crimping unit. It can strip, break, and crimp flat cables all at the same time. PH, EH, XH, SM, VH, ZH, DuPont terminals, and others are examples of terminals that can be used. 3,000-5,000 terminals per hour capacity.
Semi-automated processing saves time and money.
The terminals are pressed neatly and consistently, with good accuracy and consistency of quality.
The crimping pressure is precise thanks to the use of a stepper motor, ensuring consistent output.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Splitting length | 25-30mm |
| Stripping length | 1-7mm |
| Pin No. | 2-12 pins |
| Speed | 3,000-5,000 terminals/h |
| Crimping force | 2T |
| Available wire diameter | inner cores: φ 0.8-4mm |
| Dimension | 65*45*135cm |
| Weight | 75kg |
| Power supply | 110/220VAC,50/60Hz |
