Product Details:
|
| Functions: | Wire Cutting, Both Ends Stripping, Wire Reverse Processing, Single End Housing Inserting And Both Ends Terminal Crimping | Capacity: | 3600 Pieces/hour |
|---|---|---|---|
| Wire Size: | AWG#20 - #30 (wire Diameter Below 2.5mm) | Cutting Length: | 125 - 700 Mm (set Unit As 0.1mm) |
| Cutting Tolerance: | Tolerance 0.5 Mm | Stripping Length: | 1.0mm-3.0mm |
| High Light: | AWG20 ferrule crimping machine,Two End connector crimping machine,AWG20 connector crimping machine |
||

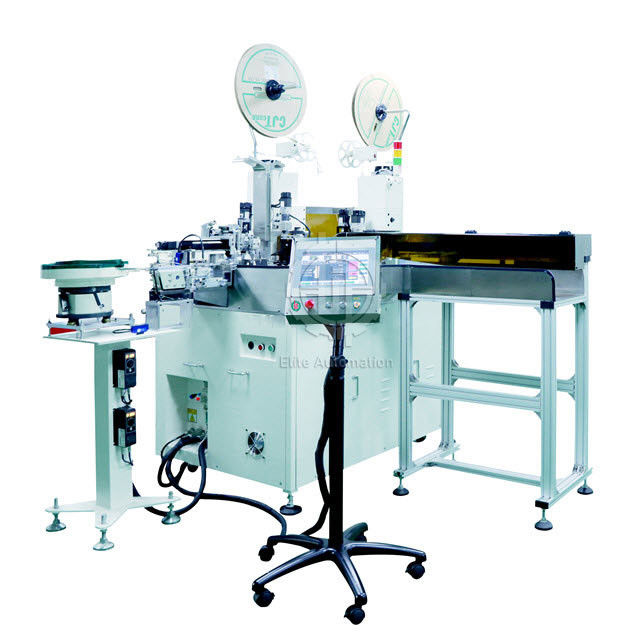

Crimping Machine for Cable Single End Housings and Two-End Connectors

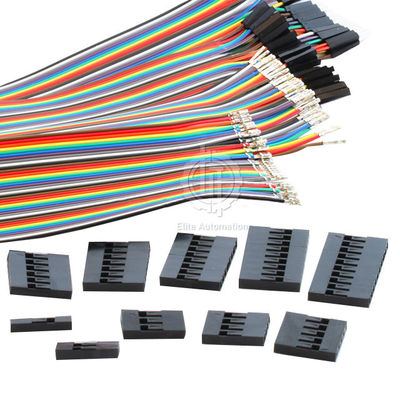

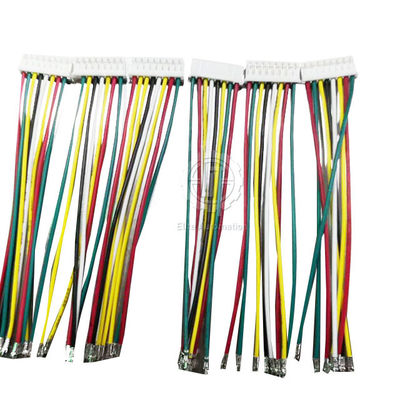

This is a fully automatic machine that can cut wire, strip sheaths on both ends, insert single end housings, and crimp two-end connectors. Reverse wire processing is supported.
Products that are in good condition and those that are faulty are discharged separately.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Functions | Wire cutting, both ends stripping, wire reverse processing, single end housing inserting and both ends terminal crimping |
| Capacity | 3600 pieces/hour |
| Wire size | AWG#20 - #30 (wire diameter below 2.5mm) |
| Cutting length | 125 - 700 mm (set unit as 0.1mm)125 - 700 mm (set unit as 0.1mm)) |
| Cutting tolerance | Tolerance 0.5 mm + |
| Stripping length | 1.0mm-3.0mm |
| Stripping tolerance | Tolerance +/-0.1 mm |
| Cutting length tolerance | Max.adjustment 2mm (adjust the scale manually) |
| Crimping force | 7.800N (equivalent 0.8 ton) |
| Control mode | PLC control |
| Power supply | AC200V/220V 50HZ 10A (110V/60Hz optional) |
| Humidity range | 30% - 80%RH No dew |
| Dimension | 1500Wx1500Dx1600H |
| Net weight | about 800kg |
