Product Details:
|
| Applicable Sleeves Length: | 5~25mm | Applicable Sleeves OD: | Ф 1.0~Ф 5.5mm |
|---|---|---|---|
| Cutting Accuracy: | ±0.3mm | Production Efficiency: | 700~1,200 PCS/H (depending On The Sleeve Size And Quantity) |
| Weight: | About 200 Kg | Dimensions: | 700mm*800mm*1,220mm (L*W*H) |

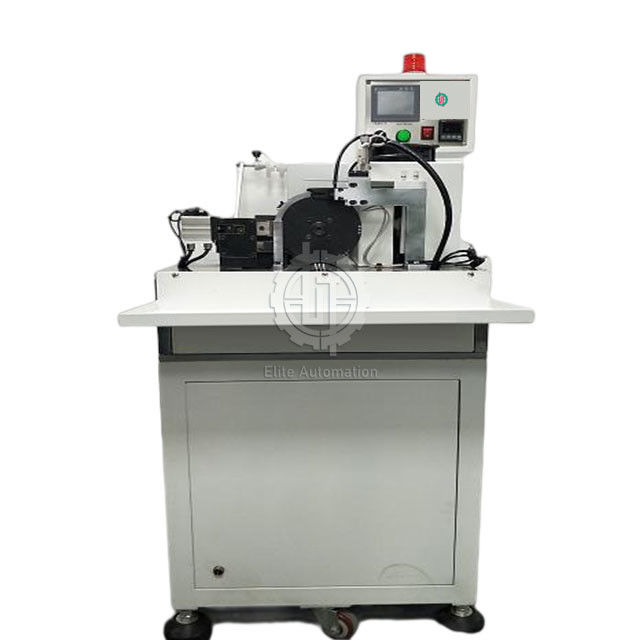

Inserting and Heating Machine for Cable Shrinkable Tubing
This machine will cut heat shrinkable tubing to the desired length automatically.

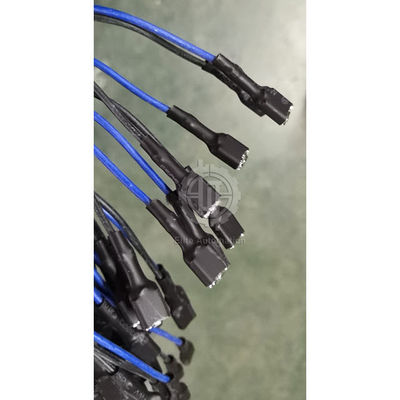

As the operator steps on the foot switch and inserts the wire end into the guide opening, the unit heat shrinks the tubing automatically.
By adjusting settings and replacing corresponding attachments, the length, dimensions, and heat shrink temperature of the shrinkable tubing can be changed.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Applicable sleeves length | 5~25mm |
| Applicable sleeves OD | Ф 1.0~Ф 5.5mm |
| Cutting accuracy | ±0.3mm |
| Production efficiency | 700~1,200 PCS/H (depending on the sleeve size and quantity) |
| Weight | about 200 kg |
| Dimensions | 700mm*800mm*1,220mm (L*W*H) |
| Power supply | AC220V 50HZ |
| Air pressure | 0.5-0.6Mpa |
| Positioning accuracy | ±0.2mm |
| Power | 1000W |
