Product Details:
|
| Jacket Strip Length: | Shortest 40mm (8 Cores) | Strip Length Of Inner Core: | 1-7mm |
|---|---|---|---|
| Number Of Inner Conductors: | 1-12 Cores | Inner Core Single Wire Diameter: | 5 Cores:min.0.75mm;8 Cores:min.0.5mm;12 Cores:min.0.3mm; |
| Voltage: | 110V/220V;60Hz/50Hz | Dimension: | 40*60*135mm |

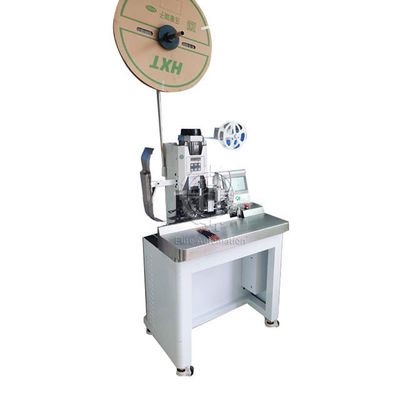

Cable Core Wires Stripping and Crimping Machine with Color Screen and PLC Servo Motors

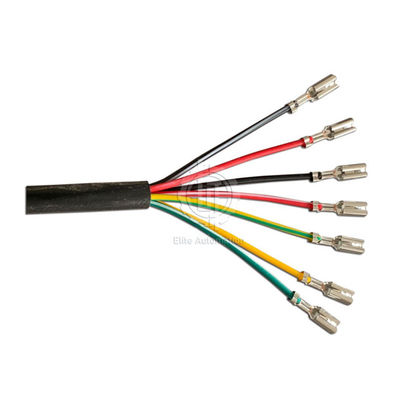

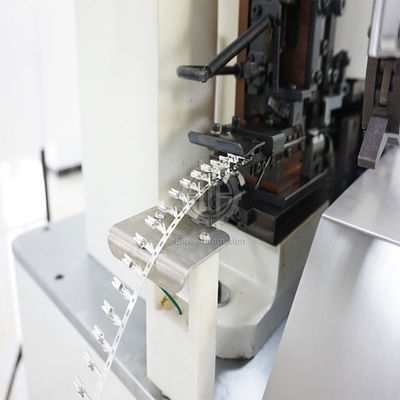

Wire feeding, inner core stripping, and terminal crimping can all be done correctly and continuously with the multi-core sheathed cable stripping and ferrules crimping rig.

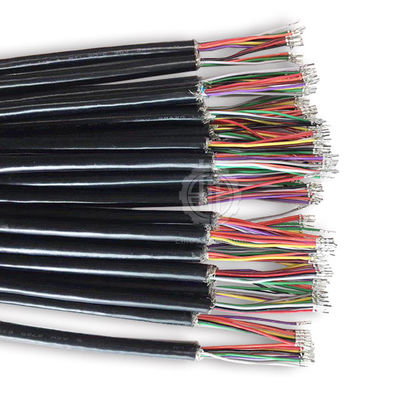

This system is designed specifically for the handling of multi-conductor sheathed cable core wires. Before using this unit, the outside jacket should be pre-stripped, and the user only needs to place the cable in the working position; the machine will strip the wire and crimp the terminal automatically. It significantly boosts the performance of multi-core sheathed cable processing.
The control system uses a PLC and a color touch screen, with servo motors driving the moving parts for easy operation and high processing accuracy.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Jacket strip length | Shortest 40mm (8 cores) |
| Strip length of inner core | 1-7mm |
| Number of inner conductors | 1-12 cores |
| Inner core single wire diameter | 5 cores:min.0.75mm;8 cores:min.0.5mm;12 cores:min.0.3mm; |
| Voltage | 110V/220V;60Hz/50Hz |
| Power | 750W |
| Speed | 700-800 pieces/hour (6 cores) |
| Pressure | 200KN/2T |
| Weight | 85kg |
| Dimension | 40*60*135mm |
