Product Details:
|
| Features: | Wire Double-end Cutting And Stripping, Crimping Terminal On One End, Twisting And Tinning On The Other End | Cutting Length: | 35-999mm |
|---|---|---|---|
| Stripping Length: | 0-10mm | Wire Range: | AWG18-28# |
| Capacity: | 2000 - 4500 Pcs / Hour | Dimension: | 700(L)*600(W)*1500(H)mm |

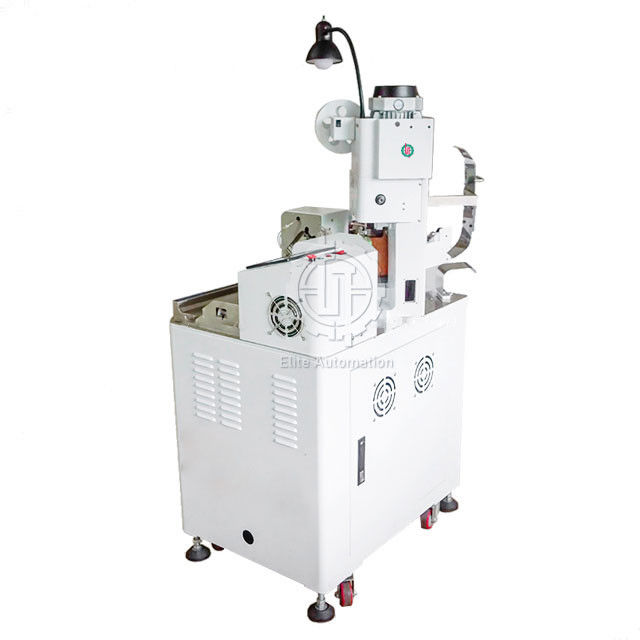

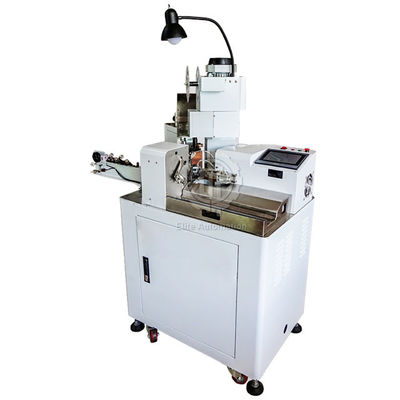

Automatic Wire Tinning Twisting and Connector Crimping Machine

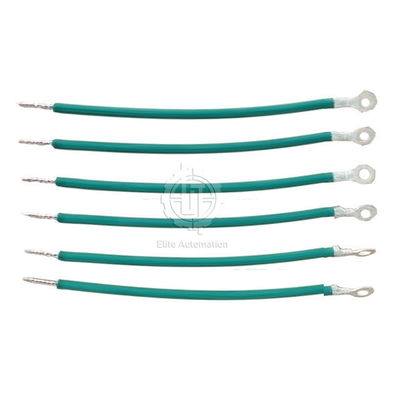

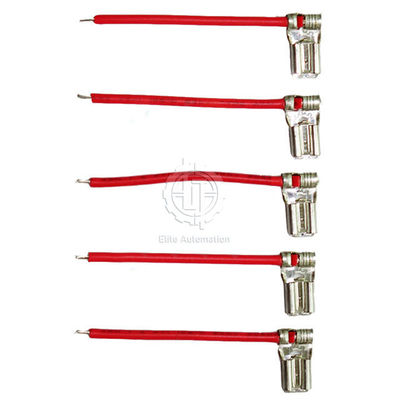

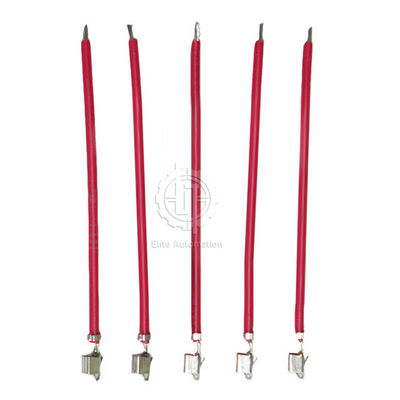

This is a fully automatic ferrule crimping and tinning machine for wire connectors. It can handle cutting and stripping on ends, as well as crimping terminals on one end and twisting and tinning on the other.
The machine's tin dipping angle is 90 degrees, ensuring that the wire is uniformly dipped and the tin depth is precise.
There is an automatic cleaning mechanism on the tin surface, so there is no tin dust left.
Crimping sections use an ultra-quiet terminal system with low noise and uniform force, as well as horizontal and vertical molds.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Features | Wire double-end cutting and stripping, crimping terminal on one end, twisting and tinning on the other end |
| Cutting length | 35-999mm |
| Stripping length | 0-10mm |
| Wire range | AWG18-28# |
| Capacity | 2000 - 4500 pcs / hour |
| Detection device | Crimp detection, lack of wire detection, pressure detection, terminal detection |
| Power supply | AC220V |
| Weight | about 260KG |
| Dimension | 700(L)*600(W)*1500(H)mm |
