Product Details:
|
Take Off Power: | 0.55kw Domestic Brand Geared Motor With Vector Inverter | Cable Lift: | Manual Handling Of The Reel |
---|---|---|---|
Coil Size: | 300-700mm Diameter (customer Needs To Provide Specific Coil Size) | Coil Clamping: | Adaptive Drive Wheel With A Maximum Width Of 680mm |
Speed: | Automatically Feedback Control | Dimensions: | 1,260*1,110*750mm (L*W*H) |
High Light: | Dia16mm wire feeder machine,70m/Min wire feeder machine,70m/Min fully automatic crimping machine |

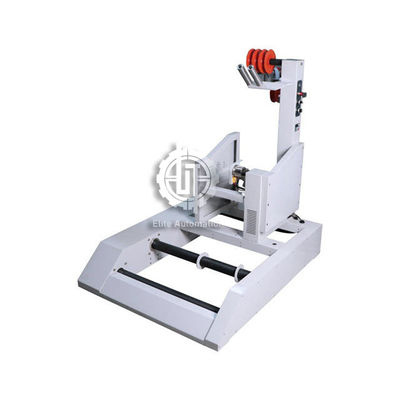

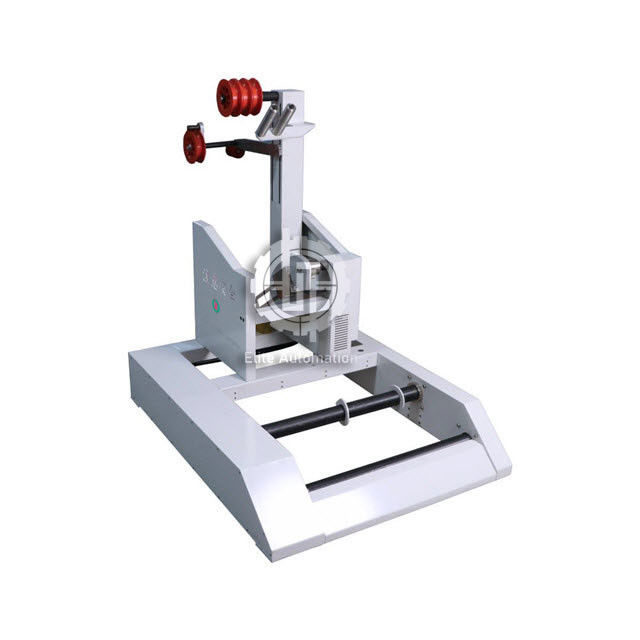

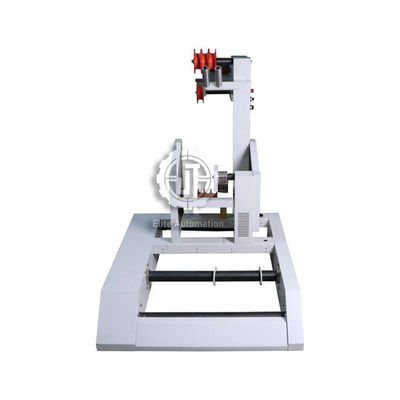

Fully Automatic Wire Feeder Machine with Maximum Speed of 70 Meters per minute
This automatic wire feeder machine produces the wire feeding results you need to increase the efficiency and consistency of automated wire harness production. The maximum processing wire diameter is 16mm, and the maximum feeding speed is 70 m/min.
Manual wire feeding is no longer necessary with this fully automatic wire feeder. It can be used for a variety of wires and cables.
Main body material: welded with high-quality national-standard rectangular tubing, the structure is sturdy and attractive.
Dimensions of the coil: 300-700mm diameter (customer needs to provide specific coil size)
Adaptive active wheel wire clamp, overall width 680mm
The maximum weight of a coil is 150 kilograms.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
Take off power | 0.55kw domestic brand geared motor with vector inverter |
Cable lift | Manual handling of the reel |
Coil size | 300-700mm diameter (customer needs to provide specific coil size) |
Coil clamping | Adaptive drive wheel with a maximum width of 680mm |
Speed | Automatically Feedback Control |
Tension adjustment | Increase or decrease the weight on the chain to adjust the tension of the cable |
Dimensions | 1,260*1,110*750mm (L*W*H) |
Voltage | 220V |
Weight | 180KG |
