Product Details:
|
Tape Outer Diameter: | Up To 110mm | Tape Width: | 9-19 (other Sizes Can Be Customized) |
---|---|---|---|
Maximum Wire Diameter: | Ф30mm | Main Engine Speed (RPM): | 200-1400 RPM, Adjustable |
Applicable Tape: | PVC, Vinyl, Cloth, Felt, Tape, Etc. | Tape Inner Hole Size: | Ф 38 (option: Ф 32) |
High Light: | Dia30mm semi automatic taping machine,Burkina Faso semi automatic taping machine,Dia30mm wire tapping equipment |

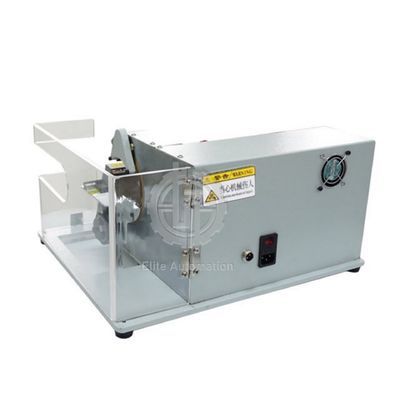

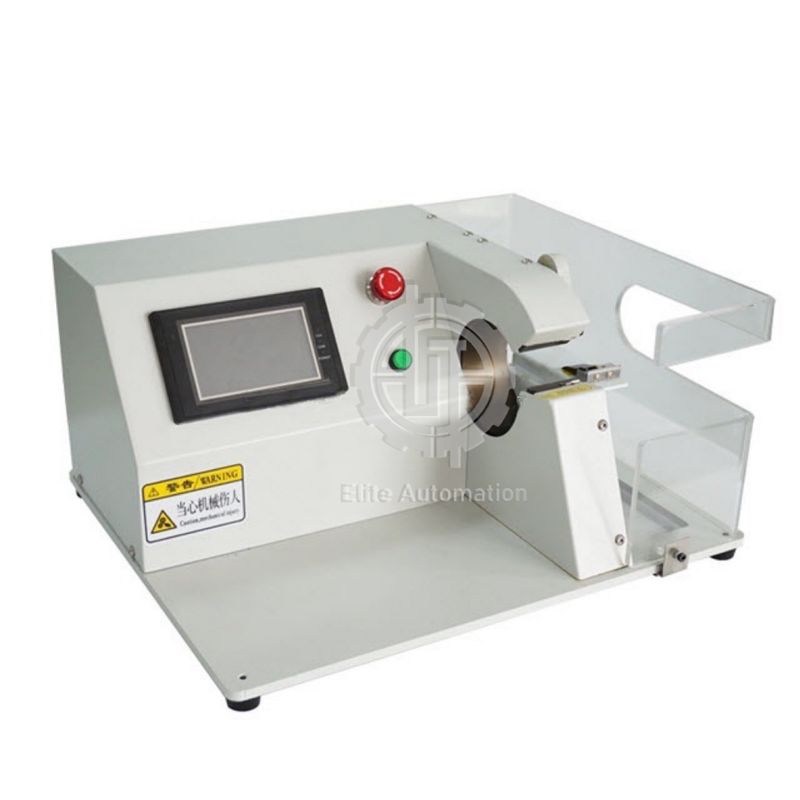

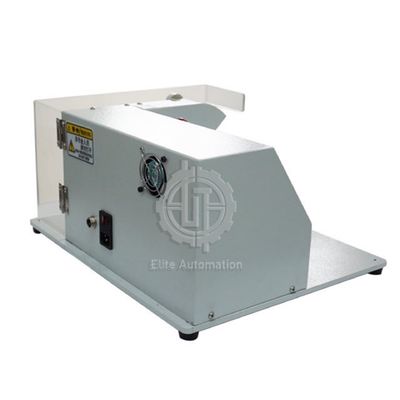

Touch Screen Burkina Faso Tape PVC tape Semi Automatic Taping Machine for Wire and Cable
The semi-automatic tape winding machine works with a variety of tape materials that don't need release paper, such as Burkina Faso tape and PVC tape. It has the ability to switch between two winding modes: point winding at the same position and spiral winding at different positions.
Compatible with a variety of non-release tape products, including Burkina Faso tape, PVC tape, and others.
The winding of the cloth tape is 1/2 inch overlapped with the previous circle, flat and wrinkle-free.

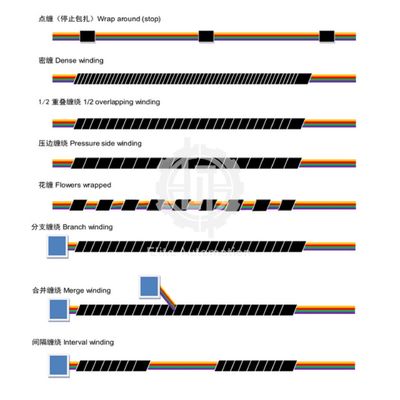

Switch between two winding modes: point winding at the same location and spiral winding at various locations.
Winding that is semi-automatic
Customizable lap and speed settings are available, as well as an output display.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
Tape outer diameter | up to 110mm |
Tape width | 9-19 (other sizes can be customized) |
Maximum wire diameter | Ф30mm |
Main engine speed (RPM) | 200-1400 RPM, adjustable |
Applicable tape | PVC, vinyl, cloth, felt, tape, etc. |
Tape inner hole size | Ф 38 (option: Ф 32) |
Voltage | 220v/110v optional |
Weight | 35KG |
Package size | 400*410*340mm |
