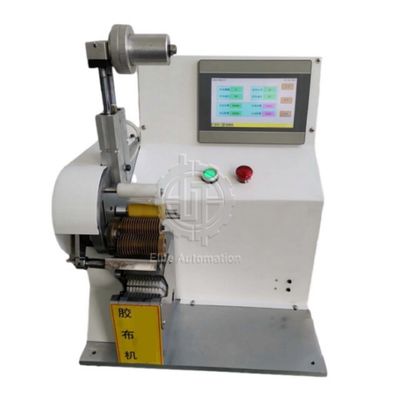

Semi Automatic Wire Spot Tape Wrapping Machine Wrinkle Free 0.5-0.6MPa Air Pressure

Semi Automatic Wire Spot Tape Wrapping Machine Wrinkle Free 0.5-0.6MPa Air Pressure
Semi Automatic Wire Spot Tape Wrapping Machine Wrinkle Free 0.5-0.6MPa Air Pressure Semi Automatic Wire Spot Tape Wrapping Machine Wrinkle Free 0.5-0.6MPa Air Pressure

Large Image :  Semi Automatic Wire Spot Tape Wrapping Machine Wrinkle Free 0.5-0.6MPa Air Pressure

Product Details:
Place of Origin: China
Model Number: EL-WFWST
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: Wooden Case
Delivery Time: 2-3 weeks
Payment Terms: T/T

Semi Automatic Wire Spot Tape Wrapping Machine Wrinkle Free 0.5-0.6MPa Air Pressure

Description
Tape Length: 50-99mm Tape Width: 25-40mm
Working Frequency: 60 Times/min. 3,000 Pieces/hour Air Pressure: 0.5-0.6MPa
Power Supply: 220V 50HZ 200W Dimensions: W400×H400×D460(mm)
High Light:

0.6MPa Tape Wrapping Machine

,

Wrinkle Free Tape Wrapping Machine

,

0.6MPa wire wrapping machine

Semi-automatic Wrinkle Free Wire Spot Taping System



This wire spot taping device is primarily used to mark, patch, and insulate cables in cars, bikes, and aviation.



After intermediate point crimping, it is ideal for tape wrapping work. Numbers are used to change the length of the tape, which is convenient, fast, and precise.



Keep it smooth and wrinkle-free so that each loop of the cloth tape covers 1/2 of the area.

It has the ability to switch between different winding types, such as spot wrapping at the same location and direct spiral winding at different locations.



It has the ability to set laps and speeds, as well as an output display feature.

The blade can be easily modified. High performance and consistent consistency.



For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.



Tape length 50-99mm
Tape width 25-40mm
Working frequency 60 times/min. 3,000 pieces/hour
Air pressure 0.5-0.6MPa
Power supply 220V 50HZ 200W
Dimensions W400×H400×D460(mm)
Machine net weight 57KG
Applicable wire diameter can be customized
