Product Details:
|
Tape/Stretch Film Width: | 10-45mm | Tape/Stretch Film Length: | No Limit |
---|---|---|---|
Tape/Stretch Film Roll Diameter: | Max. 90mm | Wire Harness Diameter: | 8-150mm |
Taping Speed: | Manual Control | Packaging Size: | 40*40*55cm |
High Light: | Manual Stretch Film Tape Wrapping Machine,Dia8mm Tape Wrapping Machine,Dia8mm stretch film wrapping machine |

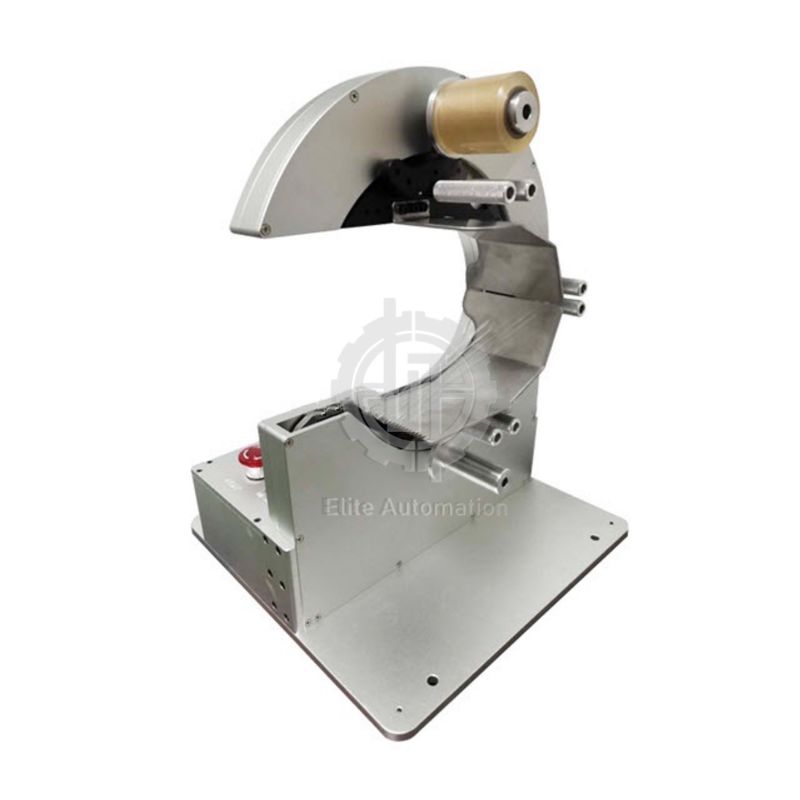

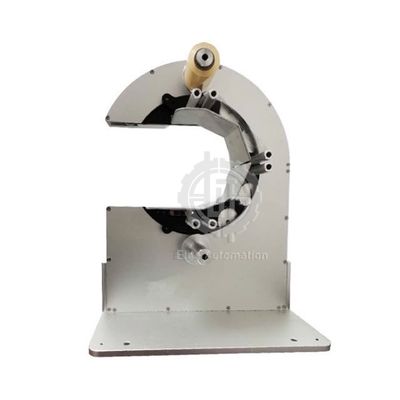

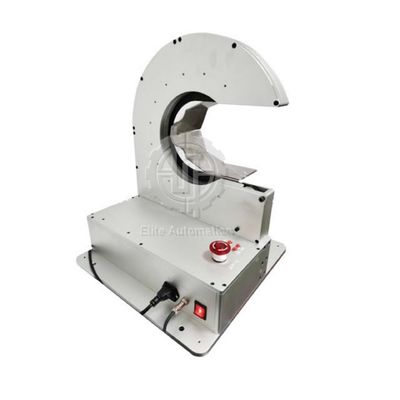

Large Wire Diameters Less Expensive Stretch Film Wrapping Machine for Wire Harness
Stretch film is wrapped into wire harness with this machine. The working speed and the number of wrapping turns can also be adjusted.
Suitable for non-insulating tapes such as cloth tape, PVC tape, and so on. There are no wrinkles in the wrapping effect. Each overlap wrapping's tape is covered with an overlapping 1/2 turn, which makes switching between wrapping modes a breeze.
This system can perform a variety of wrapping techniques, including continuous and point wrapping. It may take the place of physical labor and increase the quality of taping.

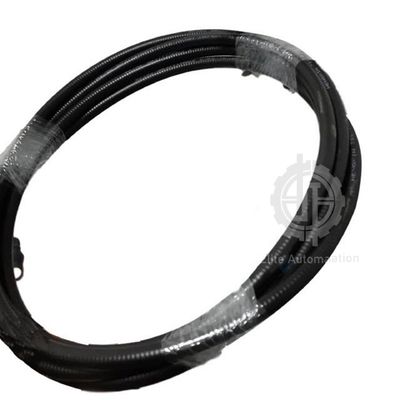

Instead of tape, stretch film is used to wrap the unit. Stretch film is less expensive than tape, so it can help the wire harness manufacturing industry save money. The stretch film's width is greater than the tape's width. In addition, this machine can wind wire harness with larger wire diameters.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
Tape/Stretch Film Width | 10-45mm |
Tape/Stretch Film Length | No Limit |
Tape/Stretch Film Roll Diameter | Max. 90mm |
Wire Harness Diameter | 8-150mm |
Taping Speed | Manual control |
Air Pressure | 0.4-0.6Mpa |
Power Supply | 110/220VAC,50/60Hz |
Weight | 28kg |
Packaging Size | 40*40*55cm |
