Product Details:
|
| Tape Inner Diameter: | 76mm | Tape Outer Diameter: | Max 120mm |
|---|---|---|---|
| Cutting Length: | 45-75 Mm | Taping Speed: | 1.5S |
| Tape Width: | 10-15 Mm(customizable) | Dimensions: | 670x390x480 Mm |
| High Light: | Inductance Coils tape bundling machine,15mm tape bundling machine,1.5S tape bundling machine |
||

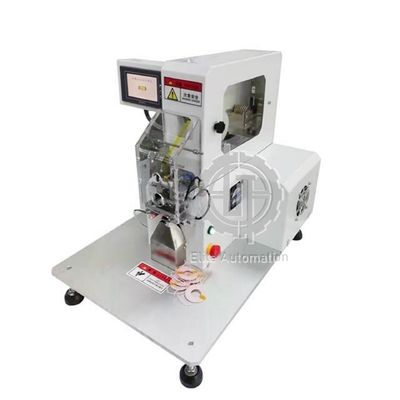

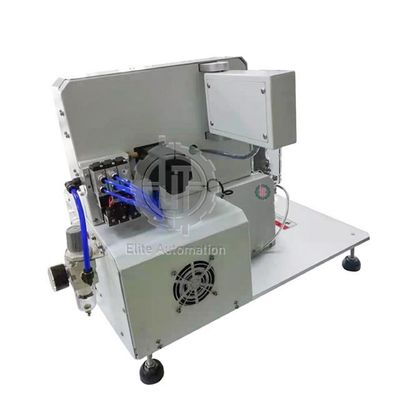

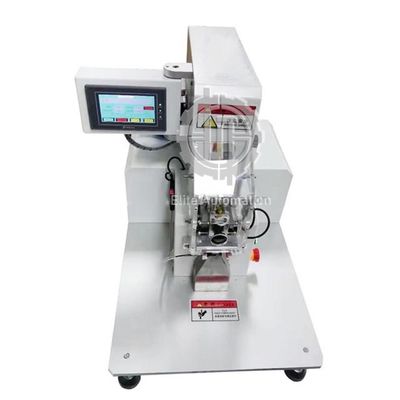

Inductance Coils Tape Bundling Machine for AC and DC Generators or Motors

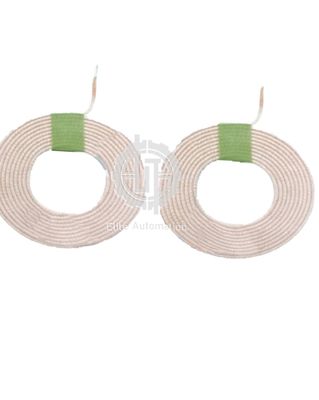

This coil taping system applies insulating tapes to inductance coils and copper coils for AC and DC generators and motors.
The tape tension and taping angle are regulated and managed by a high-tech electronic device in the taping head.
The intelligent anti-vibration device allows the roll to remain perfectly in place throughout the tape application, ensuring high quality performance.
Replace the insulating tapes: the old and new insulating tapes are bonded together on both sides.
The tightness of the taping is determined by the current mold. If you have a unique product, you'll need to customize the reel to fit the size of the item.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Tape inner diameter | 76mm |
| Tape outer diameter | Max 120mm |
| Cutting length | 45-75 mm |
| Taping speed | 1.5S |
| Tape width | 10-15 mm(customizable) |
| Air pressure | 4kg/cm2 |
| Power supply | 220v 50hz, 0.55kw |
| Weight | 30kg |
| Dimensions | 670x390x480 mm |
