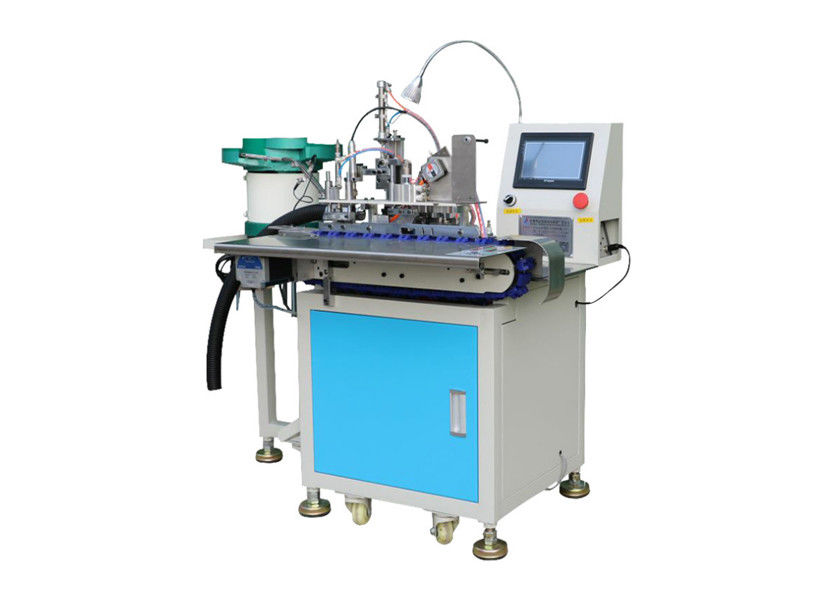

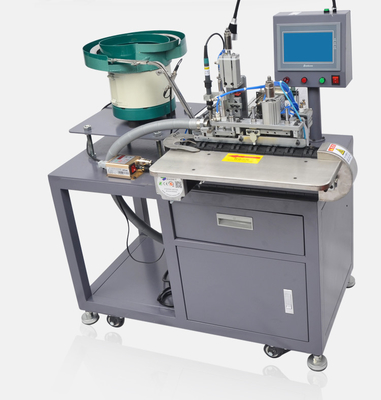

Soldering machine automatic soldering machine pedal soldering machine equipment

Main features:

1. Single chip microprocessor design, more powerful, smaller size, strong anti-interference ability.

2. The operation mode can be changed according to different models and application occasions, and the application range is wider.

3. Solder shaft provides 99 segment positioning speed selection. Provide a single step operation, overall processing, automatic processing cycle of a variety of processing modes.

4. The memory uses flash ROM, which has large capacity. It can store 1000 steps of solder data. Each step can be set with 9 kinds of solder data and 5 kinds of function selection. The solder data will not be lost after the power is cut off.

5. The position of the solder axis can be set by teaching or pressing the key, and the current position of the solder axis can be displayed in the data display window.

6. The displacement unit of solder shaft is set in a wide range, and screw of various specifications is used.

7. Strong compatibility, can directly replace the same type of controller. Unique file connection function. It can interleave complex multi-layer irregular array and non array graphics.

In the process of soldering operation, the solder joint should not be too saturated. It should be in the middle of three or four points. Otherwise, if the solder joint is too large, it is easy to open circuit with the adjacent solder joint. The tin should be in a small semicircle with the component foot. In this way, the printed circuit board can be welded neatly, which is also the best. Moreover, the lead wire of the soldering machine should not be too thin or too long, the voltage drop during welding should not be greater than 5% of the initial voltage, and gloves and protective glasses should be worn during operation. During use, do not put the soldering iron nozzle on the sponge to clean, just put the tin on the soldering iron nozzle into the tin collecting cardboard box, so that the temperature of the soldering iron nozzle will not drop rapidly. Finally, after the soldering machine is used up every day, clean it first, then add enough tin, and then cut off the power immediately, which will help to increase the service life of the machine.
