Product Details:
|
Standard Positioning Ruler: | 200mm | Maximum Label Roll Width: | 240mm |
---|---|---|---|
Maximum Label Roll Inner Diameter: | 76mm | Labeling Accuracy: | ±0.2mm |
Labeling Speed: | 1000-1500PCS / Hr | Machine Size: | About 580 * 680 * 1000mm (length * Width * Height) |
High Light: | W240mm barcode sticker machine,barcode sticker Automatic Labeling Machine,W240mm Automatic Labeling Machine |

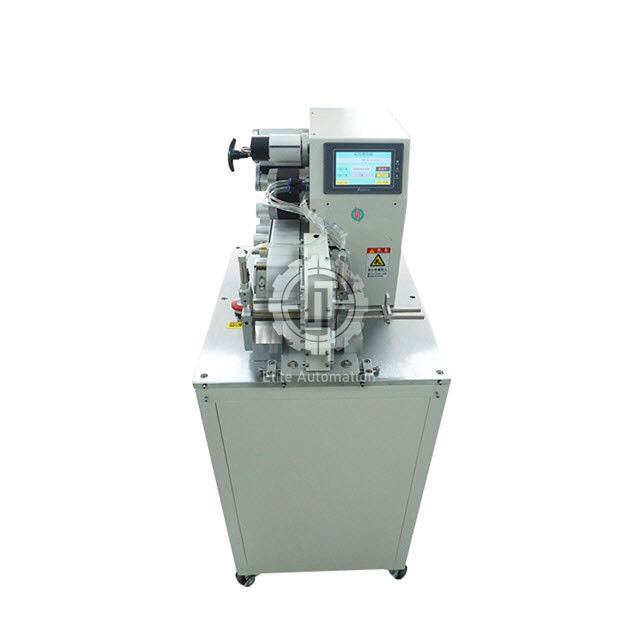

Wire Harness Sticky Label Wrap-around Machine for Bar Code Labels Warning Labels etc
Wrap-around sticky labels (e.g. bar code labels, warning labels, instruction labels, etc.) can be applied to wire and cables using this wire harness labeling machine. Simply place the wires and cables in the wire opening, step on the pedal, and the system will automatically wrap-around labels and send out label paper after they have been labeled.
PLC control system is used to ensure that the whole unit runs smoothly and at a high speed.
Touch man-machine interface, easy and intuitive service, and comprehensive functions;
To ensure stability and reliability, use well-known electrical components.
To ensure consistent and effective label distribution, use a belt conveyor.
High labeling precision, ensuring that the labeling mistake is kept to a minimum;
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
Standard positioning ruler | 200mm |
Maximum label roll width | 240mm |
Maximum label roll inner diameter | 76mm |
Labeling accuracy | ±0.2mm |
Labeling speed | 1000-1500PCS / hr |
Applicable cable diameter | 3-12mm |
Applicable label length | standard 10-100mm (Out of scope needs customization) |
Applicable label width | standard 5-40mm |
Power supply | 220V / 50HZ |
Machine size | about 580 * 680 * 1000mm (length * width * height) |
Machine weight | 86kg |
