Computerized Electromechanical Control BVR Wire Processing Machine

Computerized Electromechanical Control BVR Wire Processing Machine
Computerized Electromechanical Control BVR Wire Processing Machine
Computerized Electromechanical Control BVR Wire Processing Machine Computerized Electromechanical Control BVR Wire Processing Machine Computerized Electromechanical Control BVR Wire Processing Machine Computerized Electromechanical Control BVR Wire Processing Machine Computerized Electromechanical Control BVR Wire Processing Machine

Large Image :  Computerized Electromechanical Control BVR Wire Processing Machine

Product Details:
Place of Origin: China
Model Number: EL-SARBL
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: Wooden Case
Delivery Time: 2-3 weeks
Payment Terms: T/T

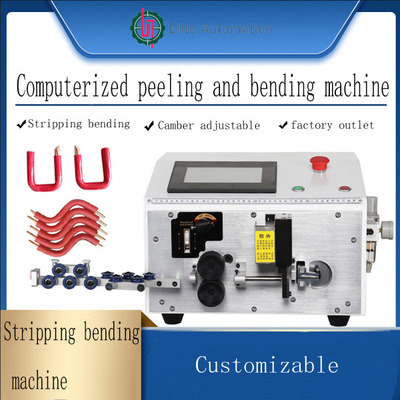

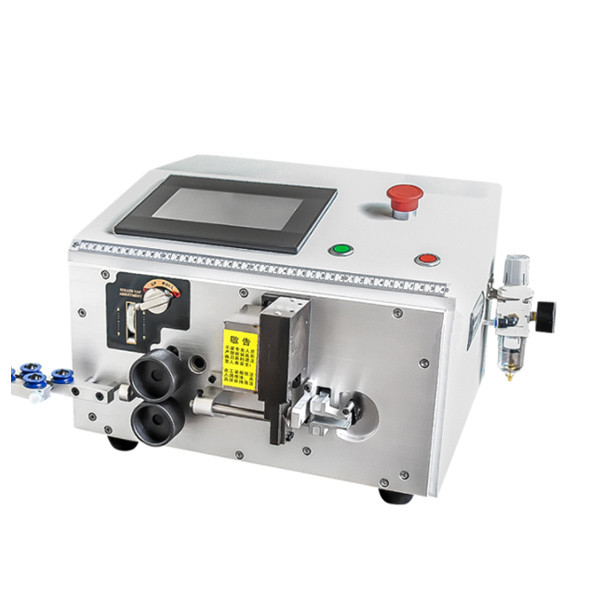

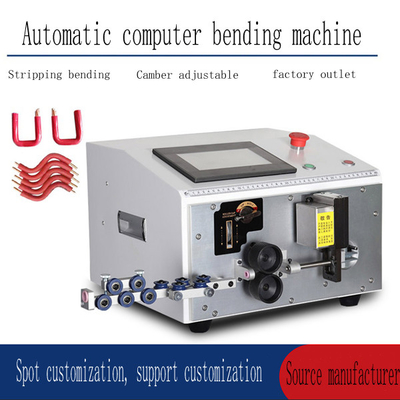

Computerized Electromechanical Control BVR Wire Processing Machine

Description
Name: Wire Processing Machine Feature: Computerized
High Light:

BVR Wire Processing Machine

,

Electromechanical Control Wire Processing Machine

,

BVR Wire Processing Equipent

Full Automatic Computer Stripping And Bending Integrated Electromechanical Control Box / BVR Wire Stripping And Folding



Wire stripping machine is the most widely used machine in the machinery industry. People now rely on various mechanical automation in many places, and wire stripping machine is the machine that can help people produce most. Wire stripping machine has been deeply loved by customers with ultra -high efficiency and automation. Wire harness processing equipment is slowly improving from the initial manual wire harness processing to the current mechanical equipment processing and bending machine. In the past, relying on manual work, not only the workload was heavy, but also the quality of the processed wire rod was not high. The length of the wire rod processed by the full-automatic stripping bending machine was uneven, and the inner core was easy to be damaged, which was very easy to affect the products that need to use these wire rods later. At present,the application market is still semi-automatic wire stripping machine with semi-manual and semi-machine. However, with the development of the times, the processing workshop has higher and higher requirements for processing accuracy, speed and quality, and the fully automatic wire stripper can just meet this market. At the same time, it also brings the wire stripper into a new era of automation and intelligence.

Machine parameters
Product name Automatic computer two end stripping and bending machine Bending Length Arbitrarily adjustable

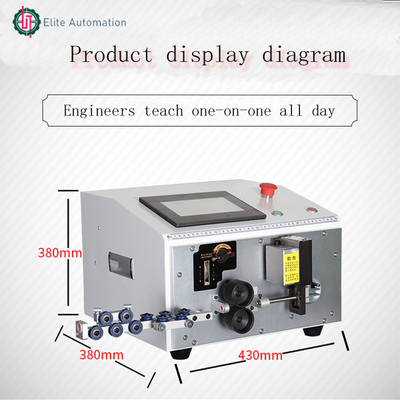

Overall dimension 430*390*280mm Display interface 7-inch touch screen
Net weight 34KG Cutting tolerance Within 0.002xlmm
Cutting wire diameter Bv hard wire 0.1-6m2 BVR soft wire 0.1-10m2 Bending mode  Clockwise, counterclockwise and bending degree are adjustable, which can be bent up and down, and the same line can be folded at an angle
Conduit diameter Match by model Slide rail Taiwan Shangyin linear slide
Tool material Imported high speed steel Power Supply AC175V-250≤50/60HZ
Driving mode two-wheel drive power 180W~600w
Number of bending segments 10 times Cutting length 0.1mm-9999.9mm
storage 200 pieces of data Stripping head 0.1-50mm
yield About 800-1500 pieces (depending on the wire) Including packing weight 36KG



Computerized Electromechanical Control BVR Wire Processing Machine 0Computerized Electromechanical Control BVR Wire Processing Machine 1Computerized Electromechanical Control BVR Wire Processing Machine 2Computerized Electromechanical Control BVR Wire Processing Machine 3
