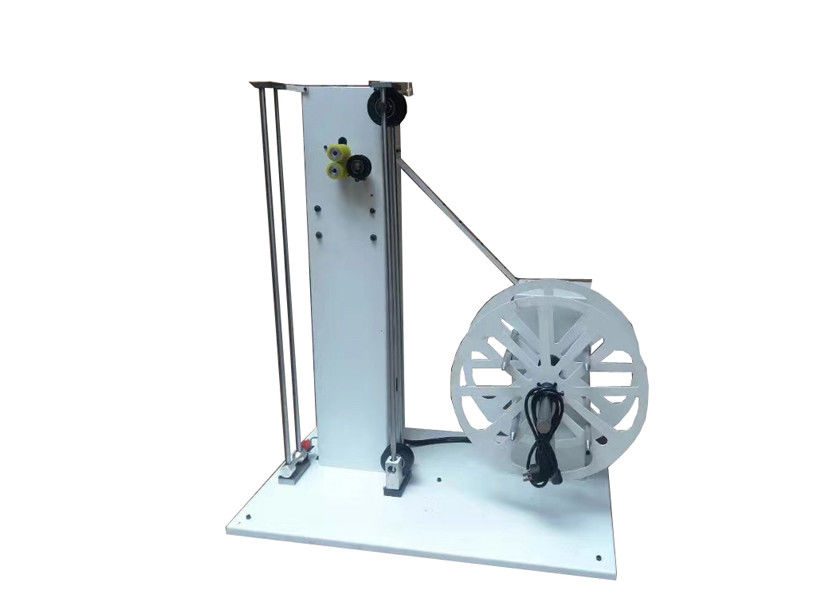

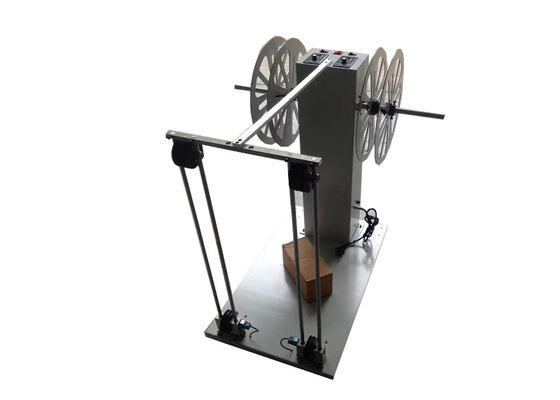

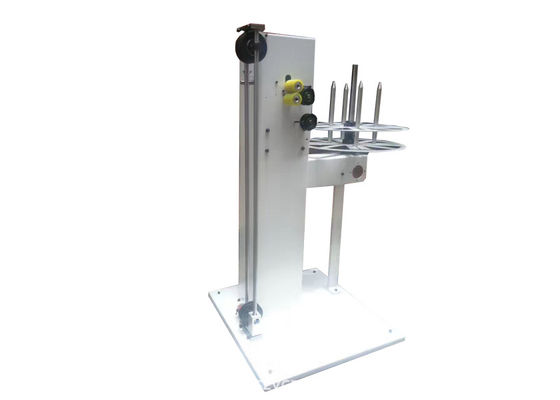

Setting out machine with brake setting out frame discharge machine receiving machine

Operating instructions for mechanical installation of take-up machine

Our company mainly produces take-up machine, small rewinder, small pay off frame, steel wire winder, take-up mechanism, horizontal take-up machine, swing arm take-up and pay off machine, take-up equipment, wire winder, pay off machine, Winder, reel take-up machine, automatic wire and cable winding, automatic take-up and pay off machine, shaftless take-up and pay off machine and other cable supporting equipment.

1, Positioning

1. Connect the center of the roller on the side of the tractor with the wire wheel of the outlet head of the machine

The center position is aligned and fixed, and the take-up machine is not fixed at first.

2, Power on

1. Open the back door of the control box of the tractor and take-up machine at the bottom left of the electrical board

The rst of the angle is connected to the three-phase electric n-neutral line.

3, Debugging

1. Check whether the power supply is normal, and stop the tractor and take-up machine control panel,

Turn right to eject and turn on the switch.

2. Press the start button to adjust the potentiometer to see if the motor rotation direction and speed control are correct

Normally, press the emergency stop button to stop the machine.

3. Turn the meter counting wheel to see whether the meter is recorded, whether the meter is stopped and whether the meter is reset

4. Press the up and down keys of the take-up machine to see if the rotation direction of the reduction motor is normal, and

Observe whether the upper and lower limits of the lifting tray are normal.

4, Meter setting

1. Remove the material cover of the meter on the control panel. The red LED of the meter shows the current value and the green LED shows the target value. For example, each coil of wire requires 100

Set "1", "2" and "3" to zero, and press "4" to "1" to achieve the target

The value is 100.0, and the line will stop when it is rolled to 100 meters.

2. Set the deceleration ahead of time. After setting the target value, press the "mode" key to turn red

Color LED display PS-1, set PS-1 value to less than the target value of 3-4m, 96-97

When the machine reaches 96 meters or 97 meters, it will alarm automatically

Decelerate and stop automatically at 100

Set to be long)

3. Parameter correction

(1) Open the front door of the electric box and remove the small switches 1 and 3 behind the meter

(2) Press 1, mode PS-1 is the value of advance deceleration,

(3) Press 2 times, mode Γ is reset time, factory value is 0.5 seconds

(4) Press mode 3 times to set SCL value to 00.5000 (factory value is

5000), note: with the increase of SCL value, the shorter the actual number of meters, the smaller the SCL value

The longer the meters come out.
