Product Details:
|
| Name: | Terminal Machine | Voltage: | AC220V |
|---|---|---|---|
| Control Way: | Fully Servo | Interface: | LCD Screen |
| High Light: | AC220V Terminal Machine,Fully Servo Double Head Terminal Machine,AC220V Terminal Equipment |
||

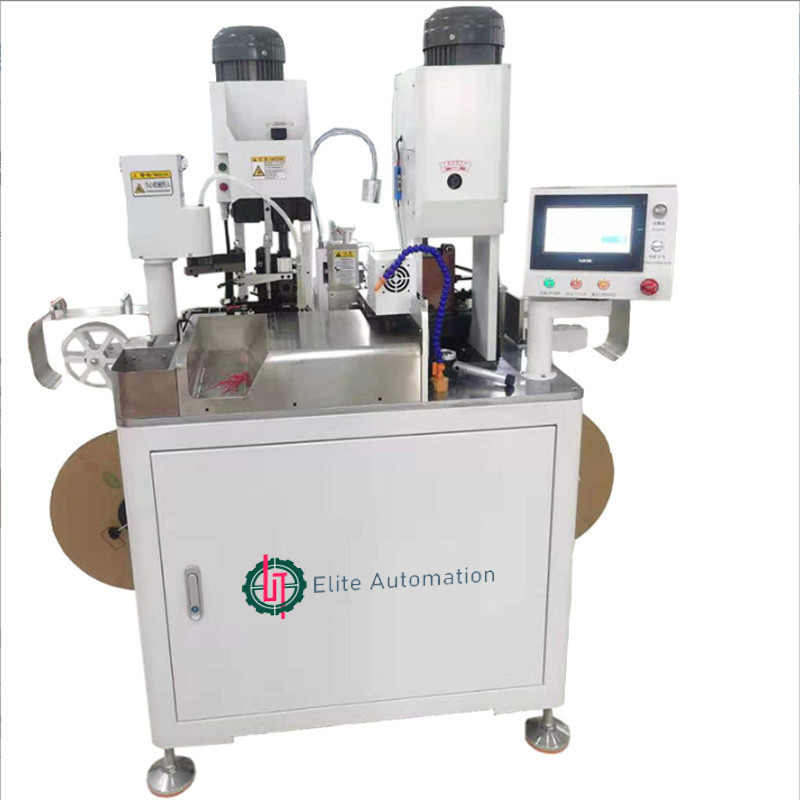

Fully Automatic Double Head Terminal Machine, Five-Wire Two-End Terminal Machine, Combined Pressure Double-Head Flat Wir
Features:
1. LCD screen, Chinese interface display, simple operation. 2. The whole machine adopts servo control with fast speed and low noise. 3. All computer touch-control digital debugging parameters, simple and fast. 4. Complete detection functions, automatic alarms for machine abnormalities such as wire, tapping, and air pressure. 5. Simple replacement of OTP straight mold, horizontal mold and blade. 6. Automatically receive terminal waste paper and cut off terminal waste machine configuration.
| Machine name | Full servo double head end machine |
| power supply | AC220V/50HZ/60HZ single phase |
| Production capacity | 4000-6000 /H (depending on the line of sight material) |
| Wire range | AWG#14-AWG#32 |
| Cutting length | 32mm-9999mm |
| Cutting accuracy | 0.2+0.02 |
| Stripping length | 0.1-9mm |
| Crimping ability | 2 tons |
| Detection device | Detection of wireless materials, whether they are pressed, ducts, and air pressure |
| physical dimension | L980*W700*H1310mm (excluding protrusions) |
| Machine weight | About 400kg |
| Tool material | Imported Tungsten Steel/High Speed Steel |
| Display method | LCD screen (Chinese/English) |
| Suitable for mold | OTP horizontal mode, OTP straight mode, can be equipped with vibrating plate |
