Product Details:
|
| Function: | Jacket Cable Wire Stripping, Shielding Wire Separating, Braiding Wire Twisting, Inner Core Stripping And Twisting, Dip Tin Plating, And Tin Tail Cutting | Application Wire Size: | Dia 2~10mm |
|---|---|---|---|
| Stripping Length: | 10~40mm | Productivity: | 2000~2200pcs/H |
| Voltage: | Single Phase 220v 50Hz/110V 60Hz | Dimension: | 2160*730*1250mm |
| High Light: | Linkable Wire Processing Machine,Linkable cable stripping machine,Dia2mm cable stripping machine |
||

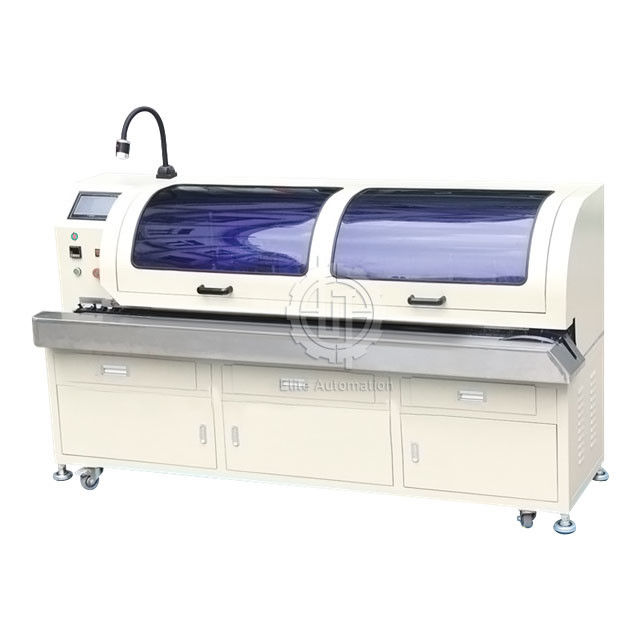

Machine for Wire Stripping, Shielding, Splitting, Twisting, and Tin Dipping.

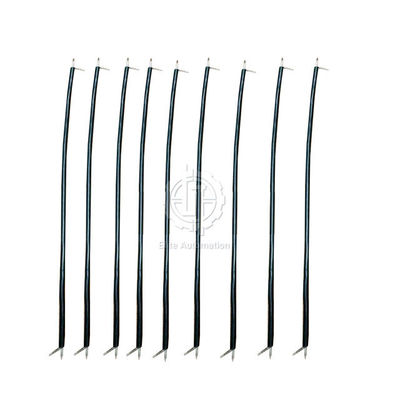

This machine is primarily used to process 1185 DC wire, car connector wire, microphone wire, and other similar types of wire. It is capable of stripping the outer skin, brushing the shielding sheet, twisting the braid, stripping the core wire, twisting the core wire, dipping tin, and cutting the tin tail.
Structure is compact, speed is fast, and precision is high.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Function | Jacket cable wire stripping, shielding wire separating, braiding wire twisting, inner core stripping and twisting, dip tin plating, and tin tail cutting |
| Application wire size | dia 2~10mm |
| Stripping length | 10~40mm |
| Productivity | 2000~2200pcs/H |
| Drive mode | Linkable |
| Customized | Available |
| Voltage | Single phase 220v 50Hz/110V 60Hz |
| Power | 1KW |
| Dimension | 2160*730*1250mm |
| Weight | 280kg |
