6 Layer Coaxial Cable / Wire Processing Machine 60 Sets Data Storage

6 Layer Coaxial Cable / Wire Processing Machine 60 Sets Data Storage
6 Layer Coaxial Cable / Wire Processing Machine 60 Sets Data Storage 6 Layer Coaxial Cable / Wire Processing Machine 60 Sets Data Storage

Large Image :  6 Layer Coaxial Cable / Wire Processing Machine 60 Sets Data Storage

Product Details:
Place of Origin: China
Model Number: EL-MLCSM
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: Wooden Case
Delivery Time: 2-3 weeks
Payment Terms: T/T

6 Layer Coaxial Cable / Wire Processing Machine 60 Sets Data Storage

Description
Cutting Length: 65~999mm Cutting Depth: 0.01mm
Stripping Length: Left Side: 40mm, Right Side: 92mm Cable Diameter: 1.0-5.5mm
Max. Stripping Layer: 6 Drive Mode: Motor/ Ball Screw Drive(Japan)
High Light:

6 layer Wire Processing Machine

,

6 layer Cable Stripper Machine

,

Coaxial Cable Stripper Machine

60 sets Data Storage Multi-layer Coaxial Cable Stripper Machine

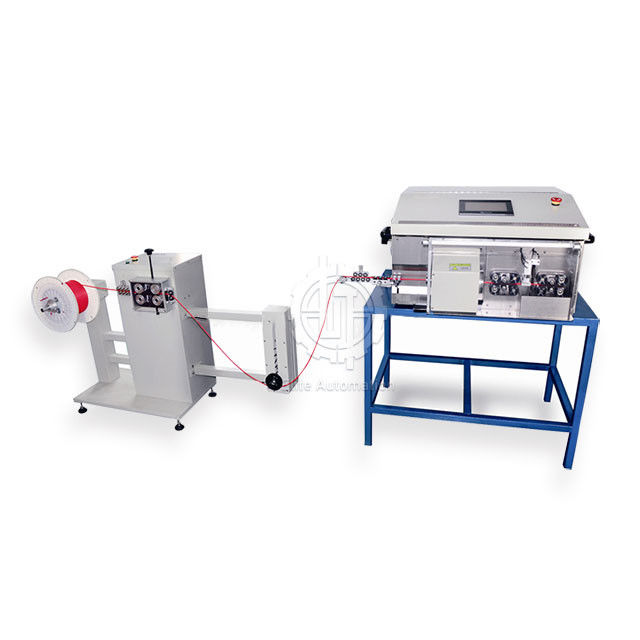

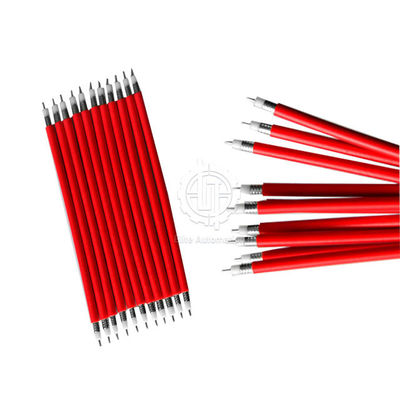

This multi-layer coaxial wire stripper machine will cut and strip semi-flexible coaxial cables with outside diameters ranging from 3.0 to 5.5mm.

Stripping in the middle and section stripping are included.

Up to 60 sets of cable processing data can be saved, making it easy to process a wide range of cables and increasing production performance.

The computer has an intelligent control system with a number of features, including an automated stop in the event of a material shortage.

For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.



Cutting length 65~999mm
Cutting depth 0.01mm
Stripping length left side: 40mm, right side: 92mm
Cable diameter 1.0-5.5mm
Max. stripping layer 6
Drive mode Motor/ Ball screw drive(Japan)
Blade 2 pieces Material:imported tungsten steel (Switzerland)
Productivity 750—1300pcs / h (depending on cable type and length)
Weight 120kg
Dimension 790*730*440mm
Power supply 220V / 50HZ 800W
