Product Details:
|
| Front Stripping: | Outer: Head 0.1-200mm, Tail 0.1-100mm | Rear Stripping: | Head 0.1-30mm ,tail 0.1-30mm |
|---|---|---|---|
| Max. Diameter Of Conduit: | Φ2-14 (Can Be Customized) | Cutting Tolerance: | ± (0.2 + 0.002 * L) Mm |
| Cutting Length: | 0.1-100000mm | Wire Feed Method: | Belt Feeding Line, Eight-wheel Drive, Independent Drive |
| High Light: | 6mm2 auto wire cutting machine,50mm2 auto wire cutting machine,6mm2 scrap wire stripper |
||

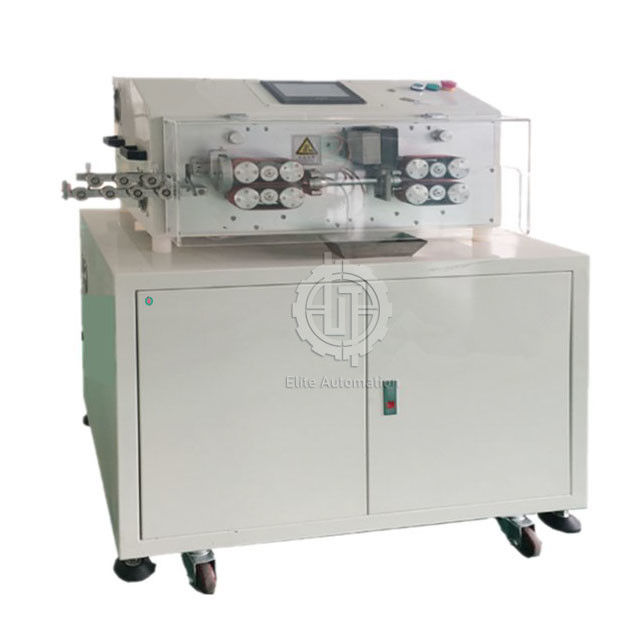

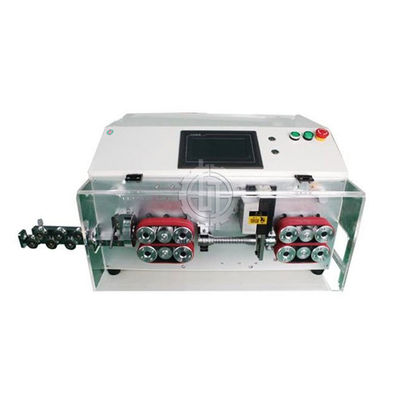

Multi-conductor Sheathed Cable Cutting and Stripping Machine 6 to 50 mm2

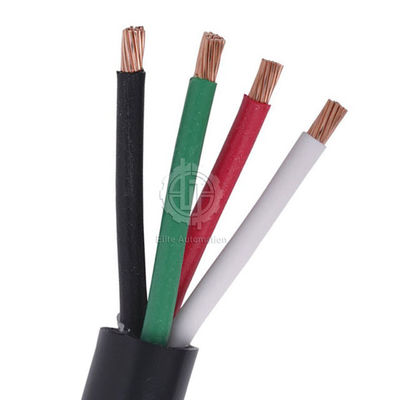

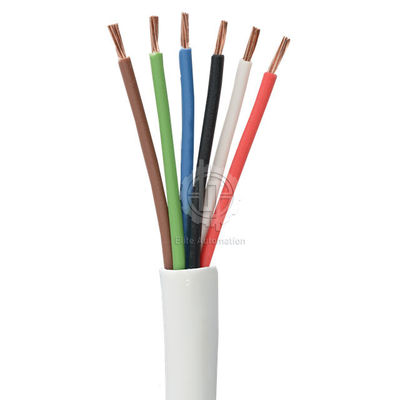

This machine automatically cuts and strips multi-conductor sheathed cables ranging in size from 6 to 50 square millimeters. It is commonly used for cable processing in new energy motors, charging stations, electronic control, and high-voltage power cables used in BC.
It also automatically cuts and strips the sheath at both ends while performing multi-layer insulation peeling processing.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Front stripping | Outer: head 0.1-200mm, tail 0.1-100mm |
| Rear stripping | head 0.1-30mm ,tail 0.1-30mm |
| Max. diameter of conduit | Φ2-14 (Can be customized) |
| Cutting tolerance | ± (0.2 + 0.002 * L) mm |
| Cutting length | 0.1-100000mm |
| Wire feed method | Belt feeding line, eight-wheel drive, independent drive |
| Wire available | sheathed cable 6-50mm2 |
| Display | Touch screen |
