Product Details:
|
| Machine Name: | Automatic Computerized Peeling And Thread Cutting Machine (10 Square Meters) | Catheter Diameter: | 1.5-10mm |
|---|---|---|---|
| Production Efficiency: | 3000-7000 PCS / H | Cutting Wire Core: | 0.1-10 Square Meters |
| Weight: | 28kg | Overall Dimension: | 400*300*330mm |
| Power: | 120W-260W | Stripping Length: | Head Stripping 20mm, Tail Stripping 20mm |
| Memo Function: | Incoming, Outgoing, Automatic Tool Setting, Timing Start, Output Can Be Set, And Tangent Speed Can Be Adjusted | Cutting Length: | 1-99999.99mm |
| Blade Material: | Imported High-speed Steel, Tungsten Steel | Pulse Equivalent: | No Error Within 2m |
| Intermediate Stripping: | 15 Segments | Drive Way: | Four-wheel Drive At The Same Time |
| Accuracy Of Incoming And Outgoing Motors: | Silent Hybrid Motor 0.01mm Per Step | Power Supply: | AC175V-260V50/60HZ |
| Cutting Tolerance: | Within 0.002*L |

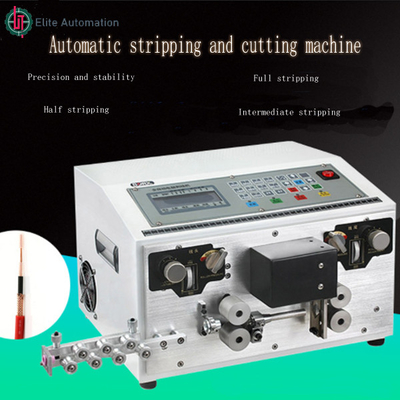

Main functions: stripping and cutting the wire, half stripping and full stripping can be carried out, and the length of the cutting line can be controlled freely

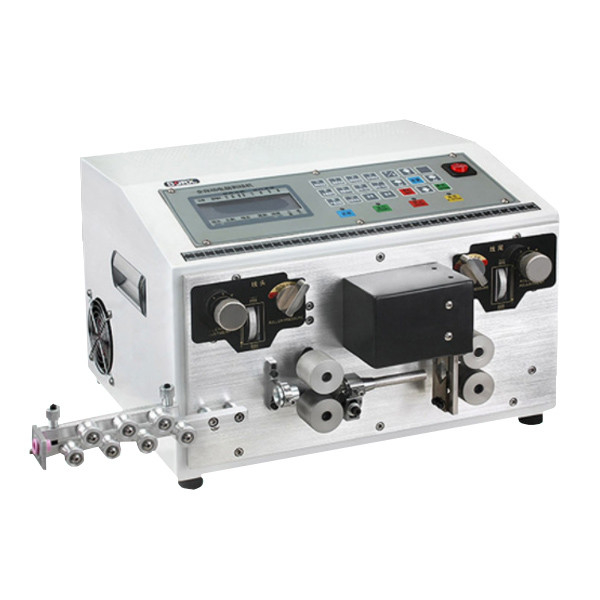

| Machine name | Automatic computerized peeling and thread cutting machine (10 square meters) |
| Catheter diameter | 1.5-10mm |
| production efficiency | 3000-7000 PCS / h |
| Cutting wire core | 0.1-10 square meters |
| Weight | 28kg |
| Overall dimension | 400*300*330mm |
| power | 120W-260W |
| Stripping Length | Head stripping 20mm, tail stripping 20mm |
| Memo function | Incoming, outgoing, automatic tool setting, timing start, output can be set, and tangent speed can be adjusted |
| Cutting length | 1-99999.99mm |
| Blade material | Imported high-speed steel, tungsten steel |
| Pulse equivalent | No error within 2m |
| Intermediate stripping | 15 segments |
| Drive way | Four-wheel drive at the same time |
| Accuracy of incoming and outgoing motors | Silent hybrid motor 0.01mm per step |
| power supply | AC175V-260V50/60HZ |
| Cutting tolerance | Within 0.002*L |

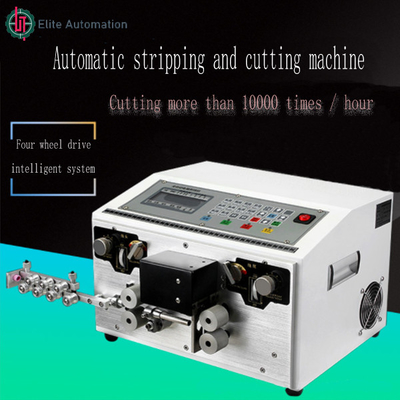

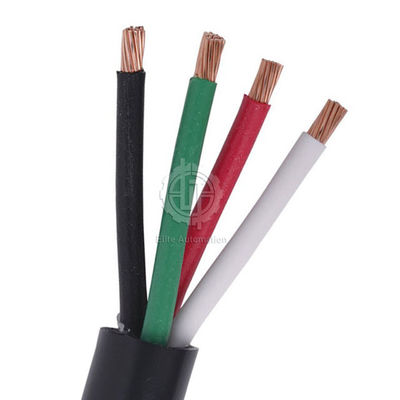

The machine is suitable for a variety of wires, such as electronic wire, FEP wire, silica gel wire, glass fiber wire, coaxial line, isolation wire, sleeve, etc. Function: realize the full stripping, semi stripping and medium stripping of wire. The machine uses a fully automatic moving tool holder, four wheels are driven at the same time, the gear is cut off, the knife cut is neat, and the stripping quality is stable. Led dual language (Chinese / English) setting, simple operation, intelligent setting and flexible replacement. Seven straighteners are adopted to make the wire more straight and accurate, and improve the work quality and efficiency. Provide a variety of accessories for more convenient use
