Product Details:
|
Cutting Length: | 1mm-999.99mm | Cutting Width: | 0.1-100mm |
---|---|---|---|
Accuracy: | Up To 0.1mm | Power: | 1000W |
Speed: | 1-99 Levels | Power Supply: | AC/220V/50, 60Hz |
High Light: | 220V plastic pipe cutting machine,1000W plastic pipe cutting machine,1000W silicone tube cutting machine |

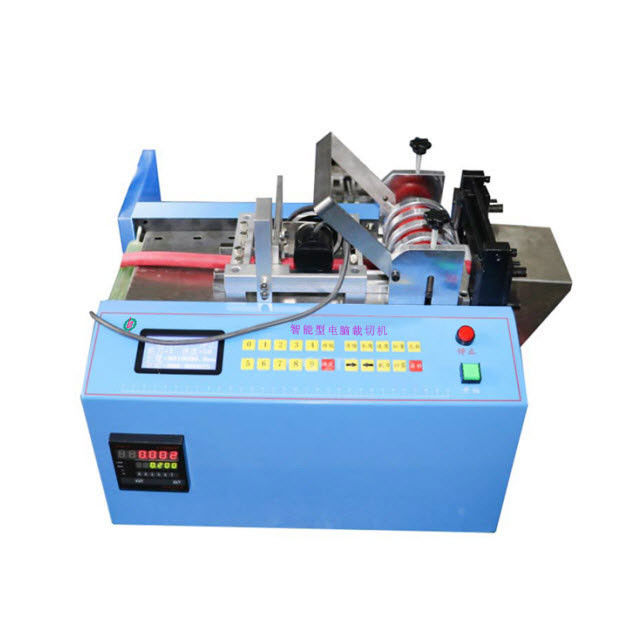

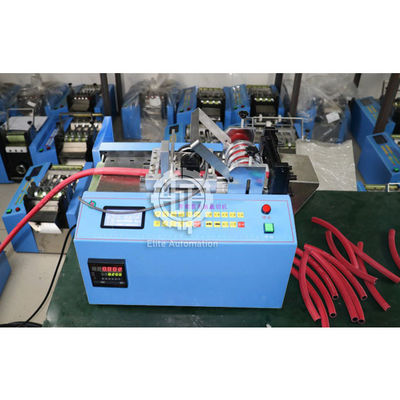

Automatic High Precision Tube Cutting and Meter Measuring Machine

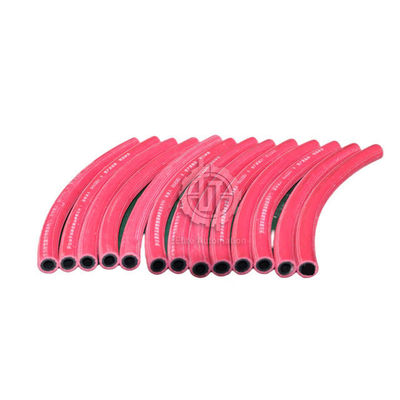

This is a high-precision tube-cutting system with metering capability. It can be used to cut PVC round tubes, silicone tubes, bathroom tubes, reticulated pipe, and gas pipe, among other things.
Functional characteristics include the ability to reduce the length error caused by elastic and smooth-surface materials;
Batch delay, length compensation, one-key reset, and easy and convenient operation are all features of this high-definition LED large-screen monitor.
High precision: Microcomputer control technology ensures that each operation is carried out with extreme precision.
Flat incision: To ensure the flatness of the incision, the blade is made of high-quality steel.
Simply set the cutting length and quantity required, and the rest will be taken care of automatically. Small size, simple operation, and increased productivity
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
Cutting length | 1mm-999.99mm |
Cutting width | 0.1-100mm |
Accuracy | up to 0.1mm |
Power | 1000W |
Speed | 1-99 levels |
Power supply | AC/220V/50, 60Hz |
Efficiency | 100-120 cuts/min (cutting length= 50mm) |
Size | L500*W300*H350mm |
Weight | 38kg |
